GAOHE is one of the competitive China cable braiding machine manufacturers. We have cheap 16 spindle high speed cable braiding machine on sale, and you are welcomed to join us and sell our cable braiding machine.

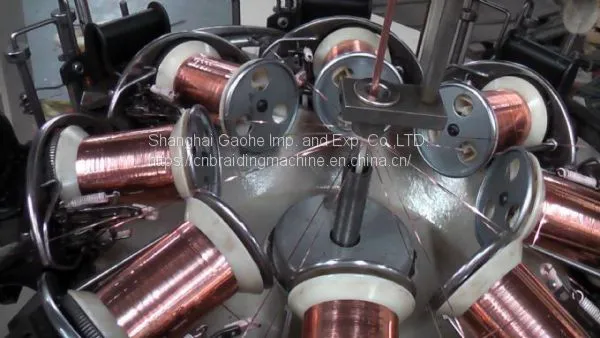

High speed cable braiding machine mainly used to produce different copper cable or the other copper, steel braided cable.
Advantages:
1.Base casting was machined in machining center after aging treatment to ensure the flatness.
2.Panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.
3.Core shaft rotor(impeller) uses ductile iron 600, firstly machined in machining center, high- frequency treatment on its surface to enhance its hardness, then machined by precision grinder.
4.Tolerance of fit between Spindle base and impeller is controlled within 0.03mm.
5.All the machines parts checked carefully before installation on the machine.
Characters:
Adopts high-quality shafts, reasonable structure, to ensure a stable function and longer lifespan.
Humanization design, safe and easy operation, direct and convenient maintenance. Reasonable spindle structure ensures customers to change the Bobbin in a fast and simple way.
This equipment uses auto thread cutting device.
Motor uses frequency converter to change the speed freely.
Standard accessories kit and complete after-sale service.
SPECIFICATION:

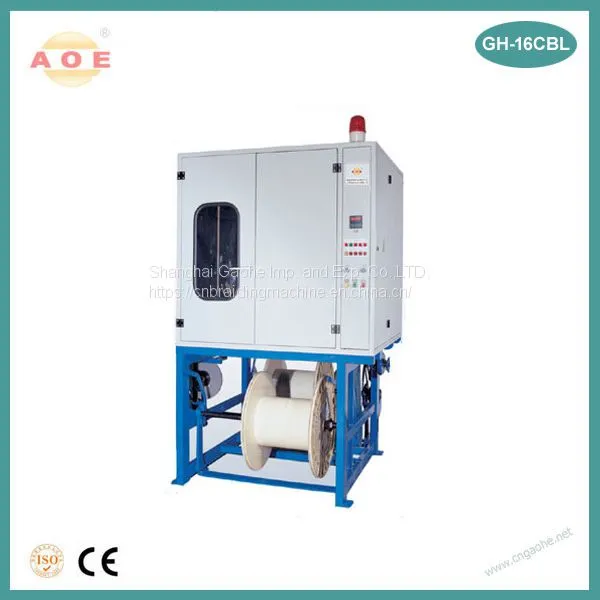

Model |
GH-16CBL |
Motor for the main machine |
380V 1.1KW |
Rotation of the main machine Max |
180RPM |
Noisy |
≤76db |
Overall diameter of the wires to be braided Max |
Φ14mm |
Reel size |
Φ800mm*600mm |
Machine weight |
≈500Kg |
Pitch regulation |
Controlled by transposing gears, the pitch maybe regulated steply |
The pitch may be regulated with steps between 5.35 and 63.51mm. |
GAOHE is one of the competitive China 16 spindle cable braiding machine manufacturers. We have cheap 16 spindle cable braiding machine on sale, and you are welcomed to wholesale products from our factory.
