Cable Ground Roller Turning Pulley

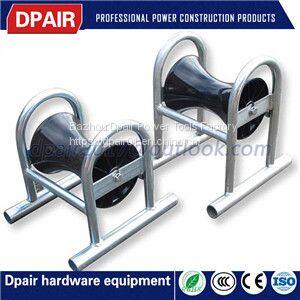

Cable Ground Roller Turning Pulley photo-1

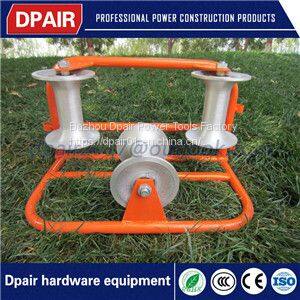

Cable Ground Roller Turning Pulley photo-2

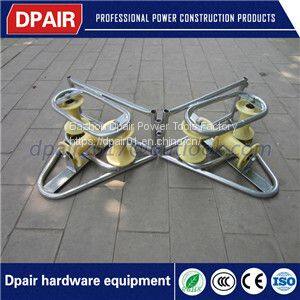

Cable Ground Roller Turning Pulley photo-3

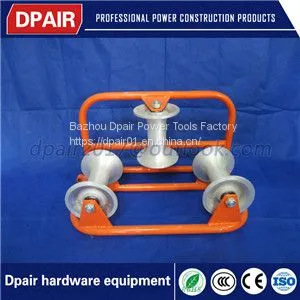

Cable Ground Roller Turning Pulley photo-4

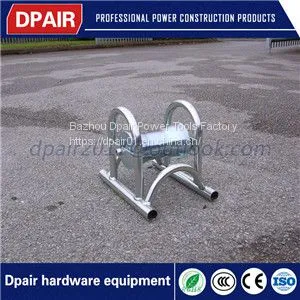

Cable Ground Roller Turning Pulley photo-5
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dpair
Place of Origin:
China
Model Number:
DPR050
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
3 days
Brand Name dpair
Place of Origin China
Model Number DPR050

The DP001 is an heavy duty cable roller for use in most cable laying applications

Features :

All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 150mm Diameter.

Steel frame fitted large weighted steel roller running on sealed ball bearings.

Base size : 350mm × 230mm

Roller size : 145mm dia × 165mm length

Roller material :aluminium ,nylon, steel

Both ends of rollers, fitted bearings with bearing covers

Load capacity : maximum 1000kgm

Features :

The DP006 is an heavy duty Triple Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations

All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 150mm Diameter.

Steel Frame Fitted Large waited steel roller running on sealed ball bearings.

Base Size : 550mm × 290mm × 300 (L × W × H)

Roller Size : 115mm Dia × 190mm Length

Roller material aluminium,nylon, steel

Both Ends of Rollers, fitted ZZ Bearings with Bearing Covers


Features :

The DP007 is an heavy duty Triple Corner Roller for use in most cable laying applications and particularly on Sand and soft ground conditions. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations

All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 150mm Diameter.

Steel Frame Fitted Large waited steel roller running on sealed ball bearings.

Heavy duty corner roller from steel plate sections

Base Size : 550mm × 290mm × 300 (L × W × H)

Roller Size : 115mm Dia × 190mm Length

Roller material aluminium,nylon, steel

Both Ends of Rollers, fitted ZZ Bearings with Bearing Covers
