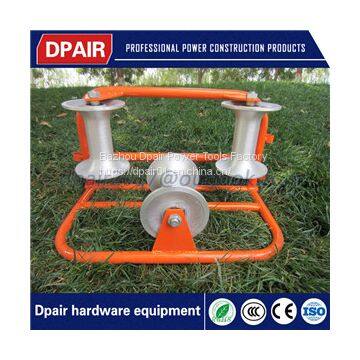

The DP001 is an heavy duty cable roller for use in most cable laying applications
Features :
All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 150mm Diameter.
Steel frame fitted large weighted steel roller running on sealed ball bearings.
Base size : 350mm × 230mm
Roller size : 145mm dia × 165mm length
Roller material :aluminium ,nylon, steel
Both ends of rollers, fitted bearings with bearing covers
Load capacity : maximum 1000kgm
Features :
The DP006 is an heavy duty Triple Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations
All Powder Coating with Plastic Coated Heavy Duty assembly suitable for Cables up to 150mm Diameter.
Steel Frame Fitted Large waited steel roller running on sealed ball bearings.
Base Size : 550mm × 290mm × 300 (L × W × H)
Roller Size : 115mm Dia × 190mm Length
Roller material ：aluminium,nylon, steel
Both Ends of Rollers, fitted ZZ Bearings with Bearing Covers
