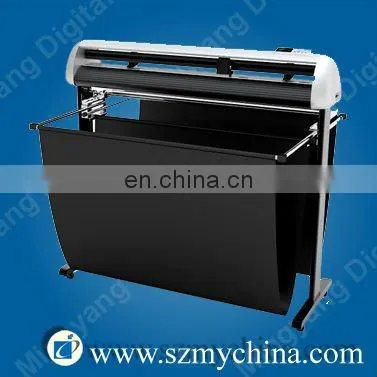

VS630 contour cutting plotter
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material
TECHNICAL PARAMETERS:
Media Way: Stand Floor Stand
Main Board: High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip)
Control Panel: 16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable
Driver: High speed stepping motor, micro-step driver
Positioning Mode: Precision electronic Bounded System, random original point setting
Maximum Paper Feed Width: 730mm
Maximum Cutting Width: 635mm
Maximum Cutting Speed: 650mm/s
Maximum Cutting Length: 20000mm
Cutting Force: 0-1000g (digital adjustment)
Mechanical Precision: 0.05mm
Repeatable Precision: < +-0.1mm
Type of Tool: Steel cutter blade
Type of Plot pen: All types diameter 11. 4mm plotter pen
Plotter Instruction: DM-PL/HP-GL Automatic Identification
Interfaces: USB/ SD Card / Serial port
Power Supply: AC110V /220V±10%, 50Hz/60Hz
Power: <100W
Red Dot Positioning: Positioning using red dot, contour cutting function;
Compatible with FLEXI8, SIGNCUT
Noise at Work: ≤75 DB
External Dimension: 1100*390*370mm
Shipping Weight: 32kg
