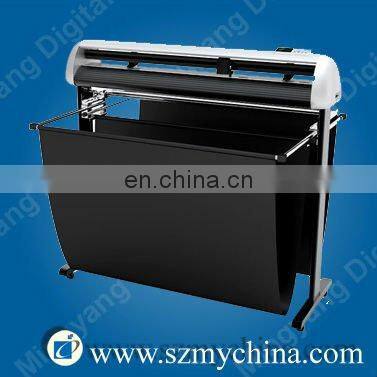

High-strength Grade Reflective Film Contour Cutting Plotter

US$ 430 - 630 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Shenzhen Mingyang Digital Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VS

film cutting plotter

1. Use ARM 13 High-performance intelligent controller.

2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.

3. Smooth operation of advanced high-speed cutting function

4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.

5. Strong cutting pressure, it can cut high-strength grade reflective film material

TECHNICAL PARAMETERS

Model	VS330 (12 inches)	VS630 (24 inches)	VS1200 (48 inches)
Media Way	M Brackets	M Brackets	Stand Floor Stand
Main Board	High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip)
Control Panel	16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable
Driver	High speed stepping motor, micro-step driver
Positioning Mode	Precision electronic Bounded System, random original point setting
Maximum Paper Feed Width	415 mm	730mm	1300mm
Maximum Cutting Width	330 mm	635mm	1205mm
Maximum Cutting Speed	650mm/s
Maximum Cutting Length	20000mm
Cutting Force	0-1000g (digital adjustment)
Mechanical Precision	0.05mm
Repeatable Precision	< +-0.1mm
Type of Tool	Steel cutter blade
Type of Plot pen	All types diameter 11. 4mm plotter pen
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB/ SD Card / Serial port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Power	< 100W		< 120W
Red Dot Positioning	Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT
Noise at Work	≤75 DB
External Dimension	900400350mm	1100390370mm	1660390430mm
Shipping Weight	26kg	32kg	56kg
