Air conditioner supply air vent diffuser aluminum linear slot grille linear bar grille

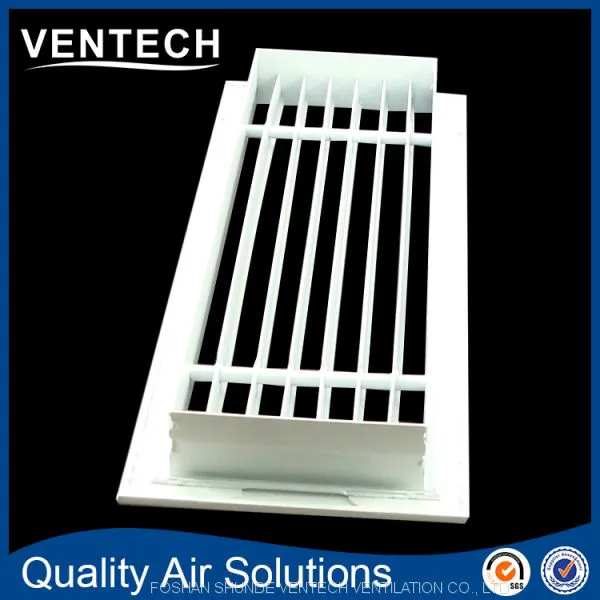

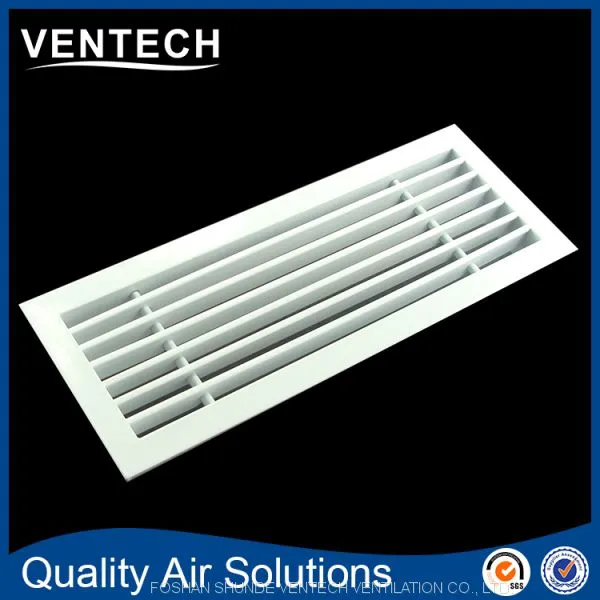

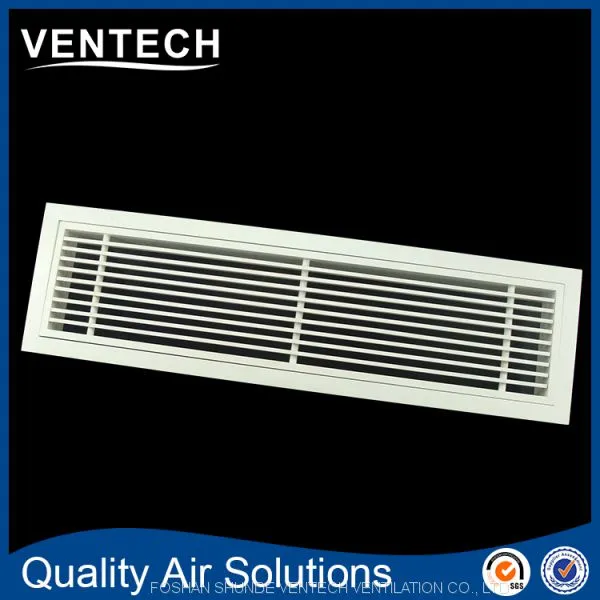

Linear bar grille

Ventilation grille the type linear bar grille is as supply air or extract air variant for comfort zones and industrial zones. Ready-to-install component which consists of a border and fixed horizontal blades.

●  Nominal length: 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1500, 2000.

  Nominal height: 100, 125, 150, 200, 250, 300.

  Horizontal run section: middle section 2000mm, end cups.

  Other dimensions upon request.

●  Fixed horizontal blades. 0 degree, 15 degree, 30 degree.

●  For installation in walls, sills and rectangular ducts.

●  Made of extruded aluminum, powder coated, or anodized.

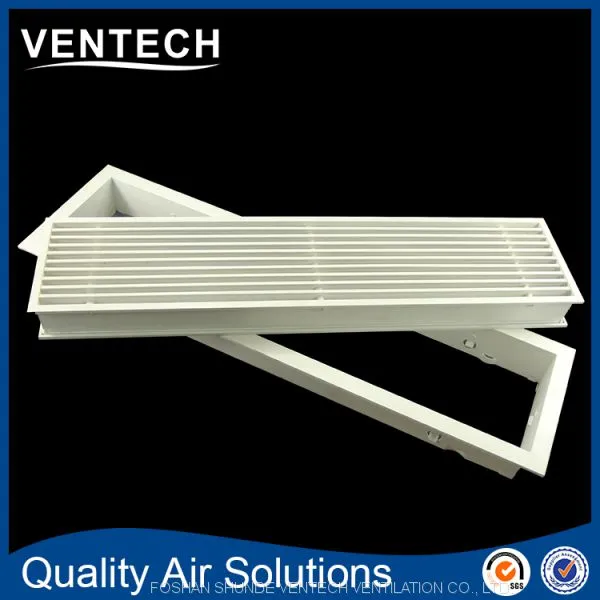

●  Concealed spring clip fixing or countersunk holes screw fixing, for installation into an installation sub-frame or fixing onto an installation surface.

● Available in RAL colors, or Anodized color.

● Also for continuous horizontal runs.

● The border, face flange: 17mm, 20mm, 25mm, 30mm.

If there are any need or question pls feel free to contact me, let's work it out together.
