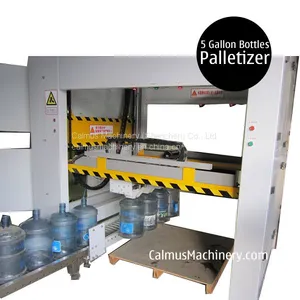

Semi-automatic 5 Gallon 19L 20L Bottle Palletizer
Features:
1. Bottles feed on a slideway by gravity with low power comsumption. Sensor detecting system can adjust the palletizing speed to match the water bottling speed.
2. Bottle lifting system uses a unique neck clamping deisng by pneumatic drive, reliable and no damage to bottle necks and neck wraps.
3. Ability to stack 1-3 layers and the number of layers can be set on the touch screen.
4. Acurate location and stale lifting.
5. Mitsubishi PLC and WEIVIEW touch screen.
6. A photoelectricity detection and protection system is employed on the lifting. In case of an object or a person there, the machine will stop and alarms.
Specifications:
Palletizing capacity: max. 1500 bottles/hour
Power: 3.0KW (excluding air compressor)
Air pressure: 0.5-0.7MPa
Air consumption: 0.15m3/min (at 1500 bottles/hour)
Dimensions: 2350×1600×2170mm
Pallet size: 1100×1100×110mm ( or customized)
Applicable bottle: 5 gallon
Number of clamping heads: 4
Palletize pattern: 4 x 4 bottles per layer. 1-3 layers adjustable.
This machine requires human to feed bottom and shelf pallets manually. We also have a fully-automatic 5 gallon bottle palletizer which feed all pallets automatically.
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include bag in box fillers, bag in box packaging lines, carton packaging machines, commercial water filtration systems, bottle filling machines and bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry.
Contact us today for a competitive price.
