5 Gallon Polycarbonate Bottle Blow Molding 20 Litre PC Bottle Making Machine

5 Gallon Polycarbonate Bottle Blow Molding Machine | 20 Liter PC Bottle Making Machine

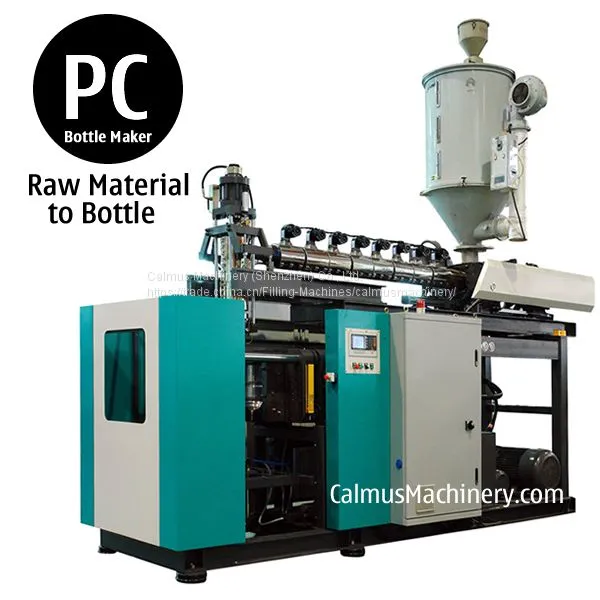

This polycarbonate (PC) bottle blow molding machine is fed with PC resin and designed for making 2-5 gallon bottles with or without handles.  The plastic raw material - PC resin direct to bottles, no need of preforms which makes bottles production easier and meanwhile saves cost of preform injection machine. It is an ideal PC bottle making machine.

Type: Raw Material to Bottle (no need of Preforms)

Feed material: Polycarbonate (PC) resin (in granules)

Bottle volume: 5 gallon or 20 litre

Production capacity: 60 pcs/hour (5 gallons)

1) Plasticizing System

Screw Diameter (mm): 85

Ratio of Screw Length/Diameter (L/D): 28

Plasticizing Rate (kg/hr): 80

Injection Stroke (mm): 360

Screw Speed Range (rph): 10-56

2) Clamping System

Clamping Force (kN): 190

Clamping Stroke (mm): 350

Mould Thickness Range (mm): 370-410

Max Opening between Platens (mm): 720

3) Power Consumption

General Power (kW): 84

Hydraulic Motor (kW): 37

Electrical Heating Power (kW): 44

Average Electricals Power Rating (kW): 58

4) Air Source Connection

Required air source pressure: min. 6-10 bar; Air consumption: 0.4M3/min..

5) Water Source Connection

Required water pressure: min. 2-3 bar; Water consumption: 6M3/min.

6) Control System

100-point wall thickness control, 6" colour display.

7) Machine Dimensions

4,985(L) x 1,465(W) x 2,765(H) mm

8) Machine Weight

6 tons (not including hydraulic oil and mould)

9) Production Capacity

>= 60 bottles/hour (based on qualification rate of 98%)

---

What do you need to prepare for making PC (Polycarbonate) Bottles?

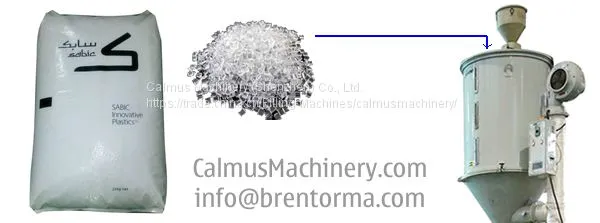

PC resin granules in bags. See the following pictures. Simple and the PC resin is easy to buy locally.

Process:

1. Load PC resin in the Hopper of the machine. (The bag picture is for reference only and there are many other brands of PC resin available in the market.)

2. Melt PC resin coming into the mould.

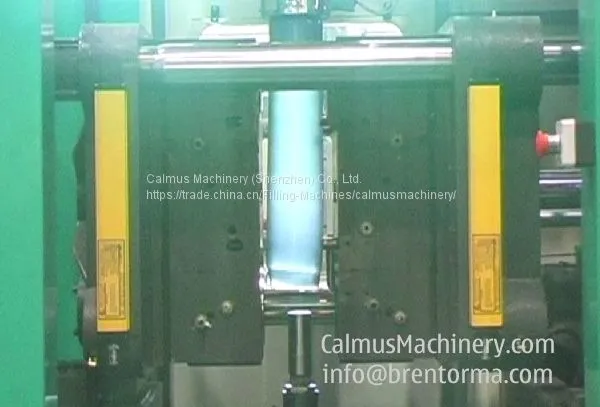

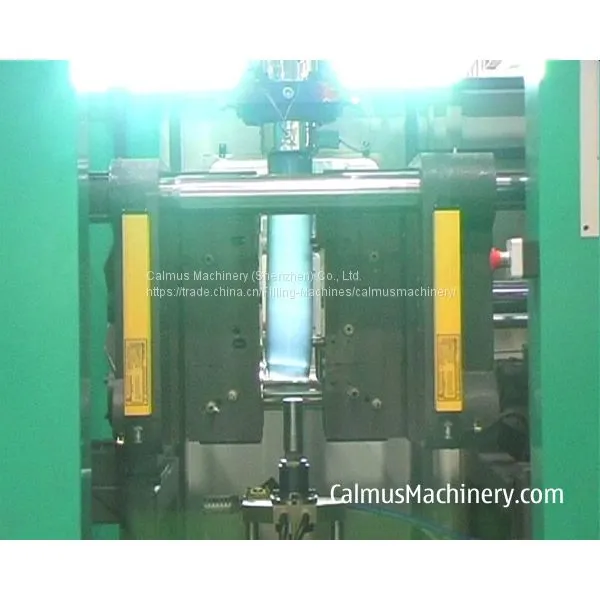

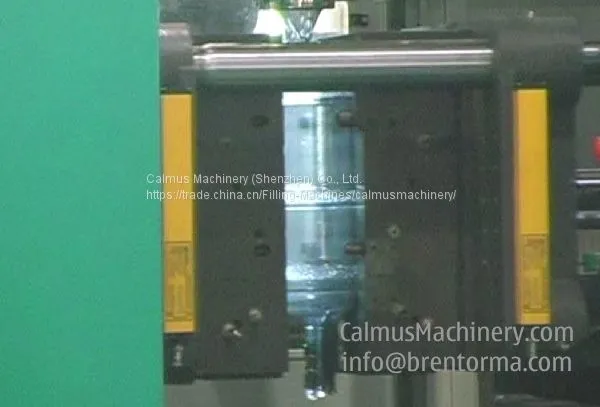

3. Melt PC resin is shaped into a bottle in the mould.

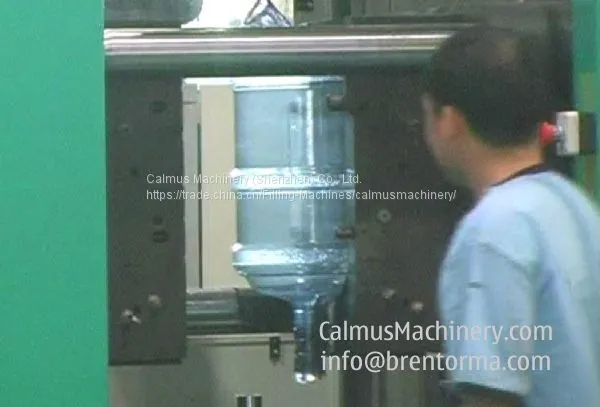

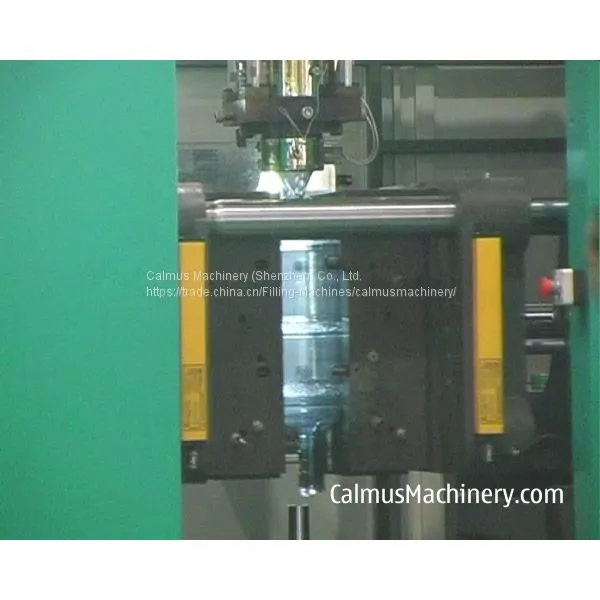

4. The mould is open and take out the bottle.

Very simple. Easy to buy material and easy to operatre.

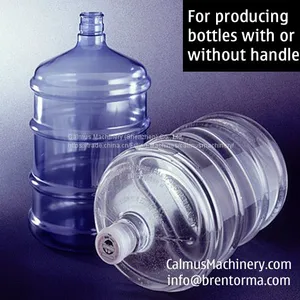

What kind of bottles does the machine can make?

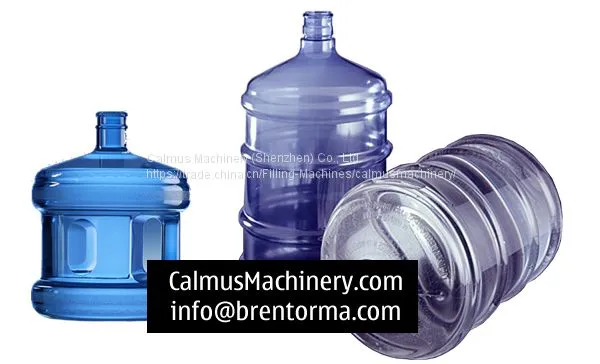

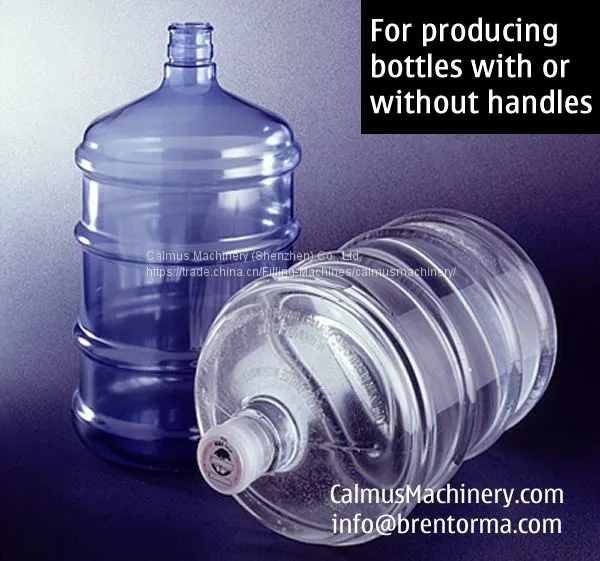

2-5 gallon bottles with or without handle.

Contact us today for a competitive price.
