Help CenterPowder Packing Machine
Related Products

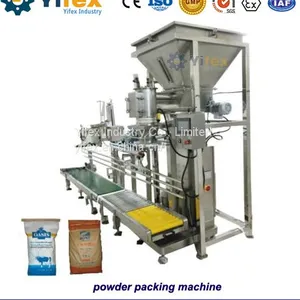

Introduction:
the semi automatic packing machine is designed according to the national standard GMP, can accomplish measuring, bag, filling, sealing, sewing, transfer and other processes. used in food, medicine, building materials, plastic, chemical and other industries packaging powder materials. such as milk powder, rice noodles, Cereals, coffee, sugar, coffee, glutamate, solid beverage、Glucose, solid pharmaceutical, pesticide, granular additive, dye 304 stainless steel manufacturing, the machine body, motor, cylinder、electrical accessories, pneumatic components, pneumatic sealing machine, sewing machine, choose well-known trademark, can also be branded as specified by the customer.
Product features:
adopts PLC- touch screen control system, with overshoot the inhibitory, fall correction, error alarm and other functions
packing scale using a new type of international popular weighing system, high speed and high precision measurement instrument, strong function
high reliability, fully meet the requirements of continuous production
drum and PVC conveying belt (the skeleton for the stainless steel) transfer, overall neat, clean, beautiful, a feeding spiral withdrawable water rinse, the convenient cleaning dead angle
is provided with a calibration procedure (a weight): can at any time convenient calibration, especially useful for the weight of the drift due to not usage for a long time.
Technical Data:
| Model | XJL-1C1 | XJL-1C2 |
| Measurement | weighing type |
weighing type |
feeding way |
double screw feeder |
double screw feeder |
| packaging weight | 5—50kg |
10—50kg |
| packaging accuracy | ≤±0.2% |
≤±0.2% |
| the packing speed: | ≤3bags/min |
≥6bags/min |
| gas pressure | 0.5-0.8Mpa |
|
| air consumption | 50L/min |
|
| suture | heat sealing machine | |
| power supply | 3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available), 3.9KW |
3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available),2.5KW |
| Weight | 400Kg |
500Kg |
| the volume | 4300 x 1300 x 2500m |
4325 x1520 x2915mm |
Certification:
CE,ISO,FDA,GMP
