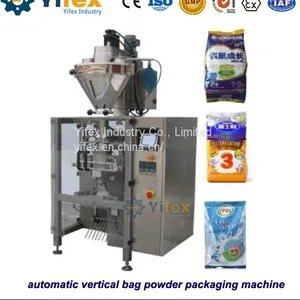

Help CenterAutomatic Vertical Bag Powder Packaging Machine
Related Products
Introduction:
This product is suitable for packing powdery material: milk powder、rice noodles, starch, protein powder, soy milk powder, sesame powder, milk powder, glutamate, salt, etc.
Product features:
, full computer touch screen control, human-machine interface, simple and convenient operation, replacement product is simple, has a fault display system, fast and convenient maintenance.
, using the latest screw head of filling materials, especially suitable for illiquid powder, high measuring accuracy, high speed. Replaceable spiral accessories, convenient adjustment package specification.
, Traction, film with servo motor control, make the drawing more relaxed, accurate bag length control.
, Horizontal sealing adopts servo motor drive, make no impact on the running, low noise, open the schedule control, can adjust the sealing pressure, can apply to various thickness and complex material.
, it can be finished automatically roll film bag making, measuring filling material, the packing sealing, date printing, the function package is optional, European peg hole, hand carry hole, Angle, nitrogen filling, cooling, long bag, etc.
, With automatic alarm, such as material, film running deviation, no film, colorless belt, etc.
Technical Data:
| Model | XJW-320 | XJW-420 | XJW-530 | XJW-730 |
| Filling head | XJL-3AL | XJL-3B |
XJL-3BL | |
| weighing range | 1-500g |
10-1000g |
100-3000g |
|
| packaging accuracy | ±0.2-0.5% |
|||
| the packing speed: | 30-50 bags/min |
25—45 bags/min |
||
Bag width |
||||
The bag length |
||||
maximum film width |
||||
The film thickness |
0.04-0.08mm |
0.04-0.08mm |
0.08-0.12mm |
0.08-0.12mm |
| Total power | 3Kw |
3.7 Kw |
4.2 Kw |
5.4 Kw |
Working pressure |
0.4-0.6 Mpa |
|||
Gas consumption |
100L/min |
150L/min |
180L/min |
210L/min |
| Weight | 350 kg |
580 kg |
730 kg |
870 kg |
| the machine volume | 1.2x0.8x2.1m |
1.5x0.95x2.5m |
1.5x1.16x2.6m |
1.8x1.3x2.8m |
bag type |
Back sealing bag (pillow bags), pin bag |
|||
Certification:
CE,ISO,FDA,GMP
