High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ thumbnail-1
High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ thumbnail-2
High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ thumbnail-3
High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ thumbnail-4
High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ thumbnail-5
High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ photo-1

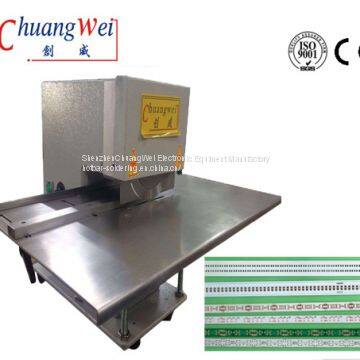

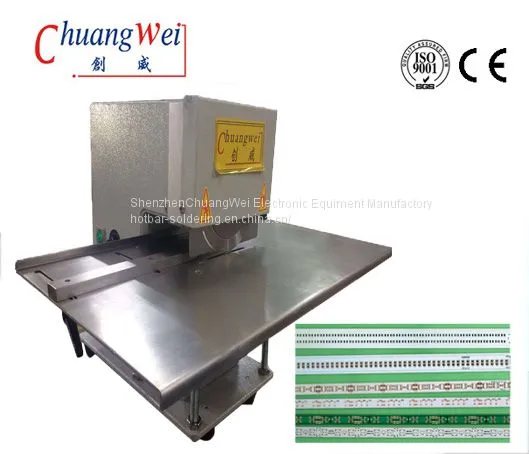

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ photo-2

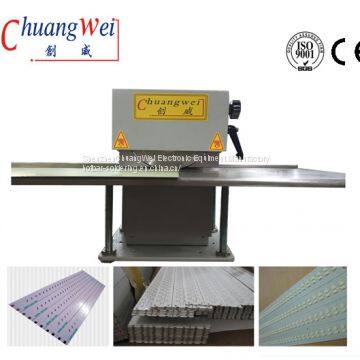

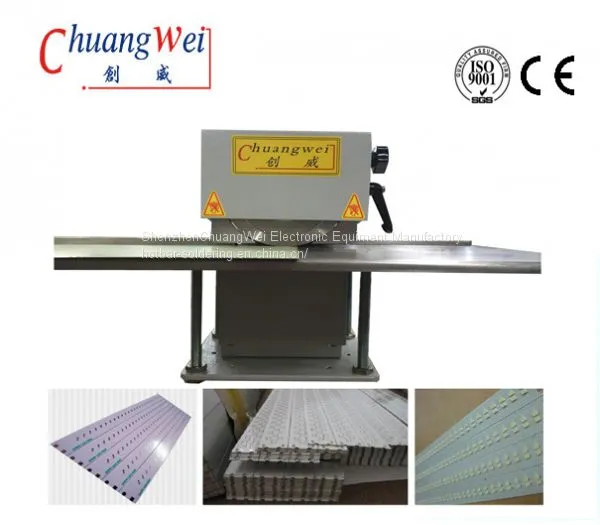

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ photo-3

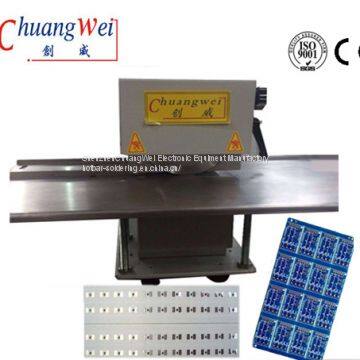

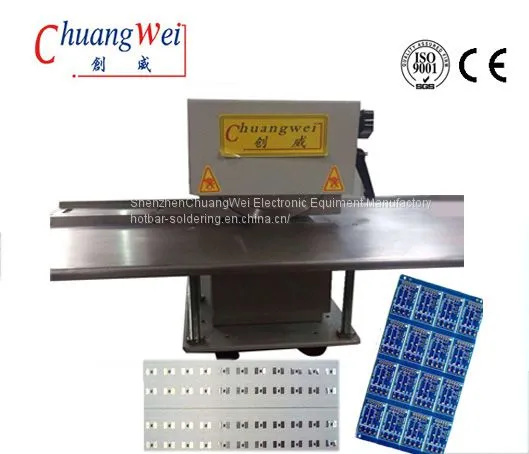

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ photo-4

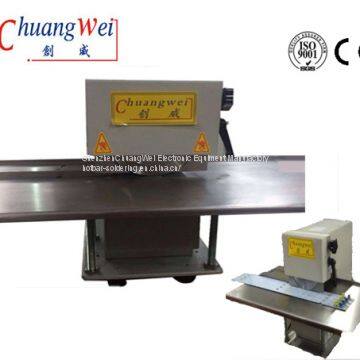

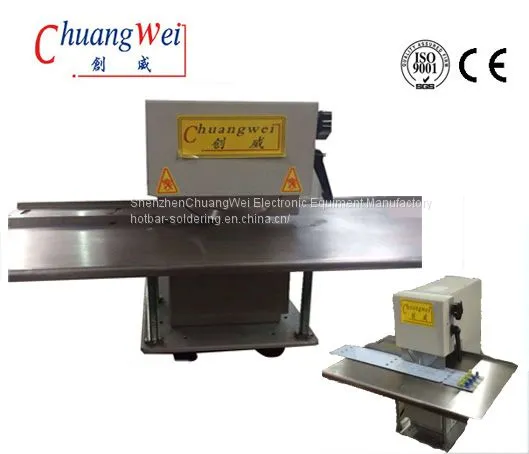

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Chuangwei
Place of Origin:
China
Model Number:
CWVC-1SJ
Contact Supplier Request Quote Chat Now
ShenzhenChuangWei Electronic Equiment Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chuangwei
Place of Origin China
Model Number CWVC-1SJ
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 20kg
Dimension(L*W*H) 500*435*345
Condition New
Voltage 110/220v

High Speed Steel Blades V - Cut PCB Separator For Aluminium Led Lighting T8 Tube,CWVC-1SJ




Specification:

Weight(kg):

20

Cutting Length(mm):

Unlimited

V-Cut Speed(mm/s):

0-400

Blades Shape:

Two Circle Blades

V-cut PCB Cutting Thickness()mm:

0.8-3.0

Voltage And Power(V):

110/220

Dimensions(mm):

500*435*345



Feature:


1.Apply to any V-cut PCB panel
2.Optional separating speed, can be adjusted easily
3.The positioning board can calibration location before and after to suit for different V-CUT clearance panel.
4.Can be equipped with long platform,exchange platform simply and easily
5.The inner cutting stress lower than the industrial standard 500μ strain.avoid tin crack ,deformation etc phenomenon.
6.The upper circular blade can be vertically adjusted clearance
7.Blades can be reuse many times through regrind


Detailed Product Description:

  1. Model CWVC-1SJ

  2. Max. PCB cutting length unlimited

  3. Blade amount up and down 2 circular blades

  4. PCB cutting mode down circular blade with motor-driven

  5. PCB cutting speed 0~400mm/s

  6. Voltage and Power 110/220V   60W

  7. Cutting machine size :500 * 435 * 345

  8. Cutting machine weight 20Kg

  9. Staff allocated one person hold PCB with both hands and feed between the circular blades for cutting , fix position on pre-scored V groove

  10. workbench optional (can make different length according to your board)




Change motor-driven V-CUT PCB Depaneling machine:

1. Max. PCB cutting length is unlimited

2. The price is very economical
3. Safety use and easy operation
4. Blade can be re-grinded to use



Our best service

1 . Engineers available to service machinery oversea .
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2 . One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be sea reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years’ experience on PCB separator machines and soldering machines. pub router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
