Help CenterCeramic Ozone Plates Long Life Ceramic Ozone Plates Ozone Ceramic Tablets Ozone Generator Air Purifier Can OEM or ODM
Related Products
-
Universal Ceramic Ozone Plate Long Life Ceramic Ozone Plates Ozone Ceramic Tablets Ozone Generator Air Purifier Can OEM or ODMUS$ 3.5 - 4.5MOQ: 200 Pieces -
Plasma Ceramic Plasma Generator, Cosmetic Instrument Plasma Discharge Ceramic Plate, Multiple Options Can Also be OEM or ODM as RequiredUS$ 1.7 - 2.5MOQ: 100 Pieces
-
Plasma Ceramic Plasma Generator, Cosmetic Instrument Ceramic Ozone Plasma Discharge Plate ,Multiple Options Can Also be OEM or ODM as RequiredUS$ 2 - 2.9MOQ: 100 Pieces
-
Ozone Generator Ozone Ceramic Plate for Commercial or Industrial Air Purification Ozone Disinfection MachineUS$ 3 - 4.5MOQ: 100 Pieces
-
Long Life Ceramic Ozone Plates Ozone Disinfection Air Purifier Ozone Generator Ceramic PlateUS$ 1.5 - 2.2MOQ: 100 Pieces
|

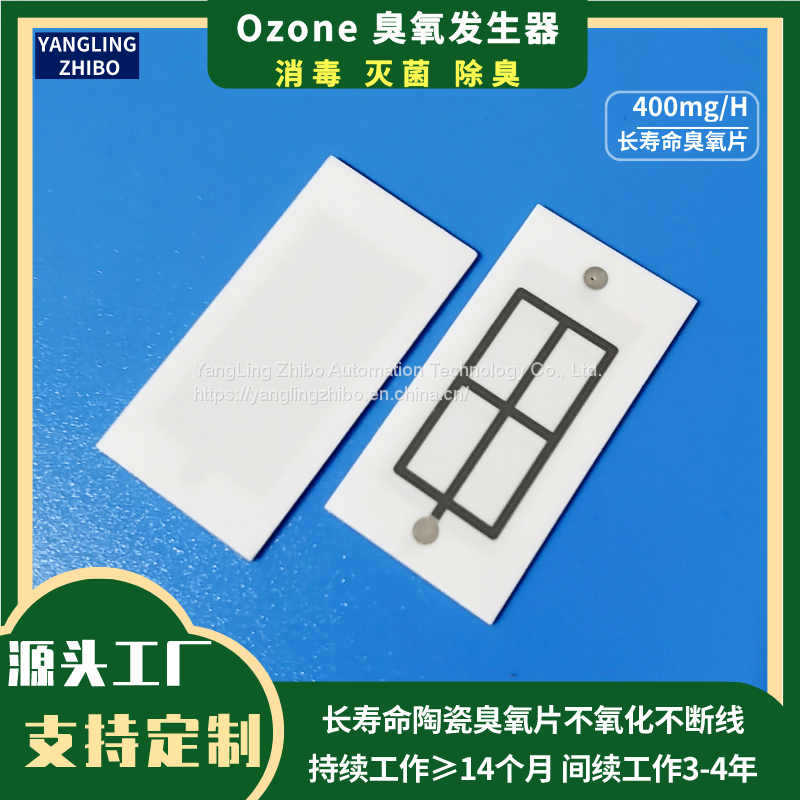

Size: 40*20*1.0mm Ozone output: 400mg/hr Outward appearance: One side discharge electrode The other side is White ceramic Electrode protective layer. Package Contents: 1x Ozone Plates The role of ozone: Ozone main role is in addition to formaldehyde, odor, smoke,Ozone sterilization, no residue of toxic substances,Eliminates odors, freshens stale air. Is powerful Odor Elimination and Deodorizer -- Eliminates virtually ANY mal-odors from mold, cigarette/cigar smoke, pet odors, paint/cleaning fumes, dust, water damage, smoke damage, cooking odors, and other airborne irritants. Don't let your lungs be the ONLY air purifier in your home! This industrial grade ozone generator/air purifier does not merely mask mal odors like some air purifiers, it DESTROYS odors! Utilizing activated oxygen (O3) technology, the air purifier/ozone generator oxidizes and destroys airborne contaminants such as bacteria, viruses, and odors. The oxidation process breaks down the molecular structure of bacteria, viruses, and bad odors, thereby neutralizing them. What is left is a "fresh, clean spring rain smell" similar to the clean air smell after a rain storm (nature's ozone generator). 5000 mg/hr of ozone produced kills germs, deodorizes, and freshens the air. In fact, with this much Ozone being produced, you can rest easy knowing you have the right tool for any job. Applications:For home, car, workshop, shed, bathroom, conference rooms, public places sterilization, air purification. Characteristic: Commercial/Industrial Grade Ozone Generator Material:96% Al2O3 ceramic+Metal W Full compliance with EU RoHS (no lead, cadmium, mercury, hexavalent chromium, PCBS, and other harmful substances) Low maintenance: Ultra-low energy usage yields cost and energy savings. - Low power consumption,safe, quiet and efficient. - Mini size, portable and easy to operate. - Easy to install and change - Can use with different model of Air purifier Usage and precautions: A>Turn on the Ozonator, close doors and windows. B>All personnel and pets leave the enclosed space. C>Turn off the machine 30mins later then open the doors and windows. Attention: - All ozone generators change the molecular structure of the air temporarily, making it difficult to breath when in use. So the ozone generators should only be used in unoccupied spaces.People and pets can not enter the closed high-concentration ozone space. - Ozone generator when working, the ozone plate may get hot,you will need a fan/blower cool the ozone plate and circulate air help to spread ozone gas. Otherwise, the temperature above 60 degrees Celsius will affect the generation and concentration of ozone. -The output high voltage is dangerous. you are strictly forbidden to touch it in any way when it is working. - Clean the ceramic plate with ethyl alcohol every month, and use it when it fully dry. In this way, to guarantee normal ozone yield. If your commercial ozone purifier does not discharge as much as before, the first thing to do is to turn off the power and remove the ozone generator, wipe the discharged side with alcohol to eliminate surface oxidation and adsorbed substances. If it still has no effect, the next step is to buy a new ozone replacement plate here. Depending on the application, our high quality ozone plates can be used anywhere for 1 - 1.5 years. We recommend that if your purifier runs daily for a full day, you should clean it with ammonia once a month. These ozone plates can only be applied to commercial purifiers in metal casings. To know more, please contact me: Contact: Miss Dong Tel: 86-13119138299 QQ: 1169158556 WeChat: 13119138299 E-mail:1169158556@qq.com
Manufacturing process and advantages: Long-life ceramic ozone board is manufactured by the following process. First, a high-melting-point metal (tungsten or molybdenum-manganese) thick film circuit is printed on the Al2O3 ceramic green sheets by screen printing, and the design of the printed pattern and the circuit should be consistent. The two ceramic green sheets printed with the metal circuit were then pressed together by a hydraulic press, the induction electrodes were press-sealed in the middle of two ceramic sheets and sintered for 22 hours in a high temperature hydrogen furnace at 1650 ℃. High-temperature co-fired ceramics Ozone Plates sensing electrode sandwiched between two layers of ceramic, moisture-proof performance, not afraid of oxidation and acid or alkali corrosion, even in low temperature and humidity can work.
Keywords: Ozone Genrator, Ozonator, Ozonizer, Ozoniser, Ozone technology products, Ozone machine, Corona discharge ozone machine, Ozone Generator for water and air treatment, Multifunction ozone generator, Ozone waste water treatment, Ozone Accessories, Ozone Product,Ceramic Ozone tablets,Ceramic Ozone Plates,Ozone air purifier,Long Life Ceramic Ozone Plates,Ozone Ceramic tablets,Ozone Disinfection machine, Ozone Generator Air Purifier,Home Air Purifiers. |
