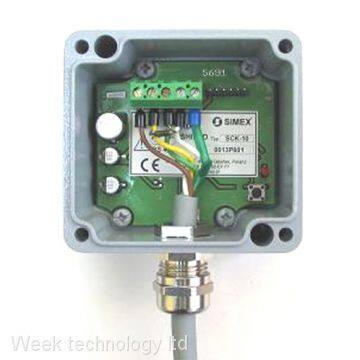

SCK-11 Dual Axis Inclinometer Module Description
The dual axis inclinometer module SCK-11 was designed to stationary measurements of inclinations of two orthogonal axes in relation to earth. Recommended range of measured angles maintains from -70 to +70 deg. Due storing of new scaling values to internal registers it is possible to change measurement unit and resolution to any other linear. Build in offset registers allows user to measure relative angles and self zeroing after mounting. In addition to two registers containing information about SCK-11 installation plane angle relative to the earth (two angles with the offset function), threre are available additional two records containing information on the accelerations in the same axes, what makes measurement of transducer movement more precision.
SCK-11 Dual Axis Inclinometer Module Features
- Two measurement channels,
- Build-in temperature sensor,
- Resistance for mechanical damages,
- Aluminium housing.
SCK-11 Dual Axis Inclinometer Module Applications
Possible application fields:
- Industry and farming
- Position control equipement
- Measurement systems of lifts etc.
SCK-11 Dual Axis Inclinometer Module Technical data
| Power supply |
10 - 36V DC |
| Current consumption |
during operation - typically 12 mA @ 24V DC during Modbus transmission - up to 60 mA |
| Angle detector |
MEMS |
| Measurement channels (axes) |
2 |
| Measurement range |
±70 deg. in relation to earth |
| Measurement unit |
any (factory scaled to degrees) |
| Measurement resolution |
from 0,001 to 1, user configured |
| Measurement accuracy |
±30 deg. (better than 0,2%; max. error 0,05 deg. @25°C) ±70 deg. (better than 0,5%; max. error 0,2 deg. @25°C) |
| Nonlinearity |
±0,1% |
| Recommended maximum gravity measurement range |
±1,5G (1G = gravitational acceleration of earth) |
| Acceleration unit and resolution |
0,001 G |
| Communication interface |
RS 485, 8N1 / Modbus RTU, not separated, baud rate 1200 bit/s ÷ 115200 bit/s |
| Compensation range |
-40°C ÷ 85°C |
| Operation temperature |
recommended -30°C to +60°C; max. -40°C to +85°C |
| Vibration frequency |
higher than 10Hz |
| Protection level |
IP 67 |
| Case type |
wall mounted |
| Case material |
aluminium |
| Mounting |
to wall, 2 M3 bolts |
| Dimensions |
without glands 75 x 80 x 57 mm, with glands 100 x 80 x 57 mm |
| Weight |
350 g |
