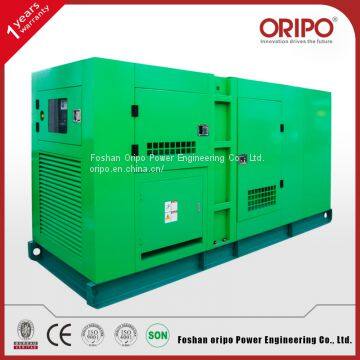

Help CenterHigh Quality Super Silent Diesel Generator for Home Price
Related Products
-
1875kVA/1500kw Electric Motor Generator With Stamford AlternatorUS$ 999 - 9999MOQ: 1 Set -
Oripo Three Phase Electric Generator With Cummins Diesel EngineUS$ 999 - 9999MOQ: 1 Set
-
Factory Sale Diesel Generator Electric Generating Set PriceUS$ 999 - 9999MOQ: 1 Set
-
Top Land Silent Energy Generator PriceUS$ 999 - 9999MOQ: 1 Set
-
Large Power Soundproof Diesel Inverter Generator With Cummins EngineUS$ 999 - 9999MOQ: 1 Set

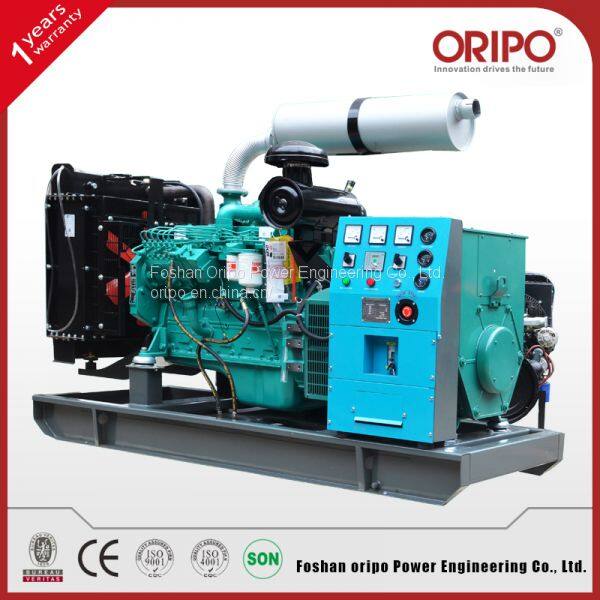

| Powerful factory best open type generating electricity diesel engine generator | |
| Generator set specifications | |
| Governor Class | ISO8528 G3 |
| Potential Drop | ±1% |
| Steady Voltage Regulation | ±1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | ±0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 207 (125.16) |
| Starting Battery Capacity ,A/hrhhr | 200*2 |
| Total Coolant Capacity ,L | 116.5 |
| Fuel Capacity (base tank),L | N/A |
| Engine Data | |
| Model | KTAA19-G6A |
| Type | In-line 6 Cylinder,4 Cycle |
| Displacement ,L | 18.9 |
| Compression Ration | 13.0:1 |
| Aspiration | Turbo, Air / Air Cooling |
| Fuel System | PT type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 159*159 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 50 |
| Coolant Capacity, L | 116.5 |
| Alternator Data | |
| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ℃(When Ambient Temp.is 40 ℃) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load |
| Telephone Interference(TIF) | |
| Telephone Interference(THF) | |
| Exhaust System | |
| Exhaust air flow | 2054 L/S |
| Exhaust Temperature | 584℃ |
| Max Back Pressure | 10kPa |
| Air Intake System | |
| Max Intake Restriction | 6.23 kPa |
| Burning Capacity | 750 L/S |
| Air Flow | 10800 L/S |
| Lubricant System | |
| Total Lubricant Capacity | 50L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 38L |
| Oil Pressure at Rated Speed | 345-483 kPa |
| Cooling System | |
| Total Coolant Capacity | 116.5L |
| Thermostat | 82-93℃ |
| Max Water Temperature | 104℃ |
1.This series diesel generator set which adopt with Cummins engine has characteristics:sight volume, large power and low noise.Standard Feature:
2.Integration module structure design, which makes the total amount of spare parts 25% less than other brand.
3.Good smooth running performance.
4.The generator/altemator matches domestic famous brand brushless LEADTECH, also can select it according to customer request.
5.Auto-regulate voltage,auto stop when high water temperature, low oil voltage and over speed rotating Remote & monitoring by 485 connections.
Optional Feature:

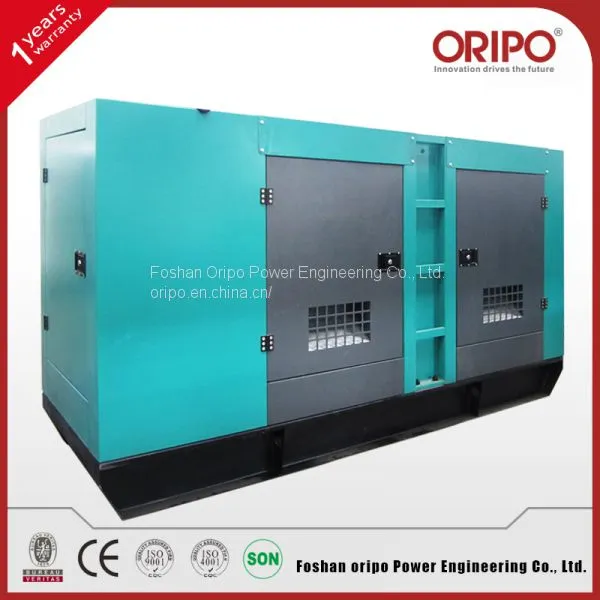

1.Sound and water proof enclosure
2.Trailer//Movable power station
3.Secondary silencer
4.Battery charger
5.Water jacket heater
6.Oil heater
7.Diesel oil heater
8.Electric speed controller
9.Automatic transfer switches(ATS)
10.Extra fuel tank
1.Q: What is your MOQ of this item?
A:1 set
2.Q: What is the lead time?
A:10 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Foshan,Guangzhou or Shenzhen
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:200 Set/Sets per Month
7.Q:What's the power range of diesel generators?
A:Power range from 5kva~3000kva.
