LT601 200°C High Temperature Pressure Transmitter With Cooling Part

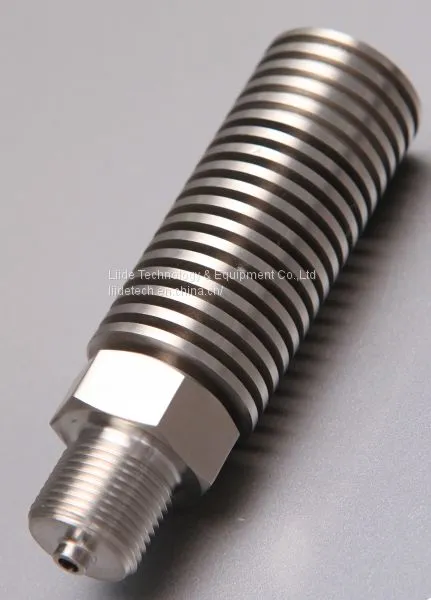

LT601 high temperature pressure transmitter is designed for pressure measurement of gas and liquid with high temperature. It is assembled with cooling device, which will reduce/isolate high temperature to pressure sensor and amplifier, so that it can remain stability and durability in high temperature medium.
Specifications:
Pressure range: |
-100KPa to 0 ~ 10KPa…120 MPa | 0～1...50MPa (gauge pressure) |
Power supply: |
16-32 VDC (＜100Kpa), 9-30VDC (≥100Kpa) |
Output signal |
4-20mA, 0-5V |
Over load: |
150%F.S |
Stability: |
0.25%/year |
Accuracy: |
0.25%FS, 0.5%FS |
Pressure type |
Gauge pressure, absolute pressure, sealed gauge pressure |
Electrical connection: |
DIN, aviation plug, fly wire, polyurethane jacket |
Protection: |
IP65 |
Relative humidity: |
≤90% |
Working temperature: |
(-40～150℃, -40 to 250°C (0~1…50Mpa,gauge pressure )) |
Compensation temperature: |
-20～85℃ |
Medium |
Gas, liquids compatible with SUS630 (17-4PH) Stainless steel |
Zero temp error/ span temp error |
0.5%FS/10℃ |
Insulation resistance |
≥500MΩ |
Thread connection |
G1/4, M20*1.5, M14*1.5 |
Model & Ordering guide
LT601 |
High Temperature Pressure Transmitter |
||||||
Pressure type |
A |
Absolute pressure |
|||||
G |
Gauge pressure |
||||||
S |
Sealed gauge pressure |
||||||
Accuracy |
2 |
0.25%FS |
|||||
5 |
0.5%FS |
||||||
Pressure range |
*** |
(-100KPa～0～10KPa…120MPa) (please write directly pressure range and unit, such as -100Kpa to 500kpa, 50Mpa) |
|||||
Output signal |
V1 |
1-5VDC |
|||||
V0 |
0-5VDC |
||||||
R4 |
RS485 |
||||||
A4 |
4-20mA |
||||||
Process connection |
G14 |
G1/4 |
|||||
G12 |
G1/2 |
||||||
M14 |
M14*1.5 |
||||||
M20 |
M20*1.5 |
||||||
CT |
Customized (please specify) |
||||||
Electrical connection |
HS |
Hirschmann |
|||||
DN |
DIN |
||||||
