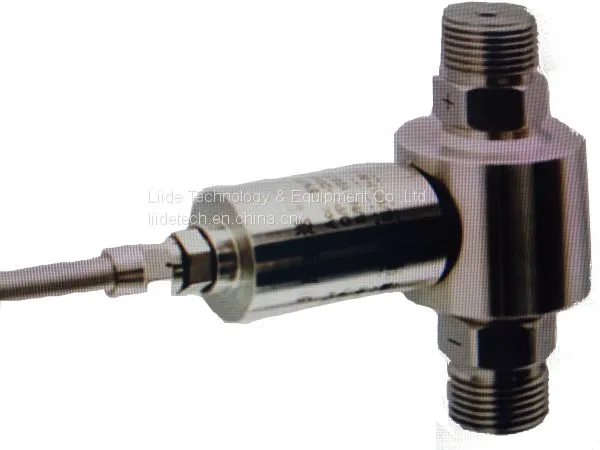

LD602 Micro Differential Pressure Transmitter
LD602 micro differential pressure transmitter is assembled with silicon pressure chips and 316 stainless steel housing. It has long stability, high performance, high accuracy, high anti-interference. It can be used for gas and liquids that compatible with 316 stainless steel. By changing pressure connection methods, it can measure negative pressure.
Specifications:
Pressure range: |
-100KPa to 0 ~ 500KPa |
Over load: |
120%F.S |
Output signal |
4-20mA, 1-5V, 0-5V, 0-10mA, 0-20mA |
Power supply: |
12-36VDC |
Stability: |
0.25%/year |
Accuracy: |
0.1%FS,0.3%FS, 0.5%FS |
Working static pressure |
0-35Mpa |
Electrical connection: |
DIN, aviation plug, fly wire |
Working temperature: |
(-40 to 85°C, -40～120℃ ) |
Compensation temperature: |
0～70℃；-20～85℃ |
Medium |
Gas, liquids compatible with 316 Stainless steel |
Zero temp error/ span temp error |
0.5%FS/10℃ |
Insulation resistance |
≥500MΩ |
Thread connection |
G1/4, , M14*1.5 |
Model & Ordering Guide
LD602 |
Micro Differential Pressure Transmitter |
|||||
Accuracy |
1 |
0.1%FS |
||||
3 |
0.3%FS |
|||||
5 |
0.5%FS |
|||||
Pressure range |
*** |
(-100KPa to 0 ~ 500KPa) (please write directly pressure range and unit, such as -20Kpa to 100Kpa) |
||||
Output signal |
V1 |
1-5VDC |
||||
V0 |
0-5VDC |
|||||
A1 |
0-10mA |
|||||
A2 |
0-20mA |
|||||
A4 |
4-20mA |
|||||
Process connection |
G4 |
G1/4 |
||||
M1 |
M14*1.5 |
|||||
CT |
Customized (please specify) |
|||||
Electrical connection |
DW |
Direct wire ( fly wire) |
||||
DN |
DIN |
|||||
AP |
Aviation Plug |
|||||
