6 x 3200 Hydraulic Swing Beam Shearing Machine

6 x 3200 Hydraulic Swing Beam Shearing Machine thumbnail-1

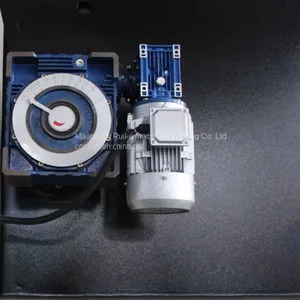

6 x 3200 Hydraulic Swing Beam Shearing Machine thumbnail-2
6 x 3200 Hydraulic Swing Beam Shearing Machine thumbnail-3
6 x 3200 Hydraulic Swing Beam Shearing Machine thumbnail-4
6 x 3200 Hydraulic Swing Beam Shearing Machine thumbnail-5
6 x 3200 Hydraulic Swing Beam Shearing Machine photo-1

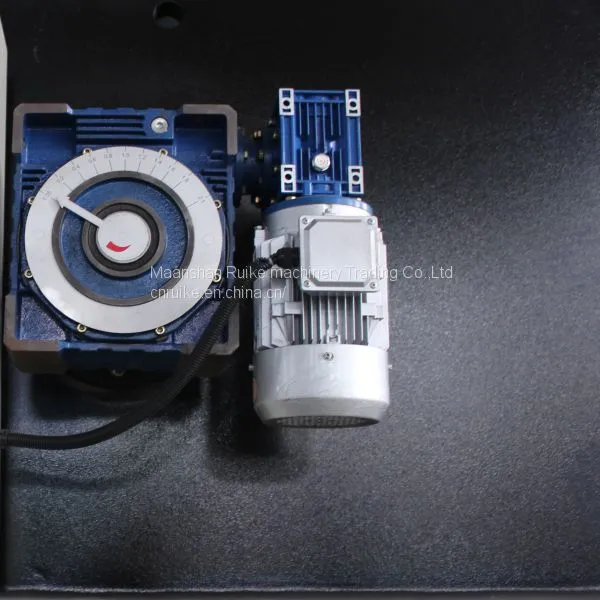

6 x 3200 Hydraulic Swing Beam Shearing Machine photo-2

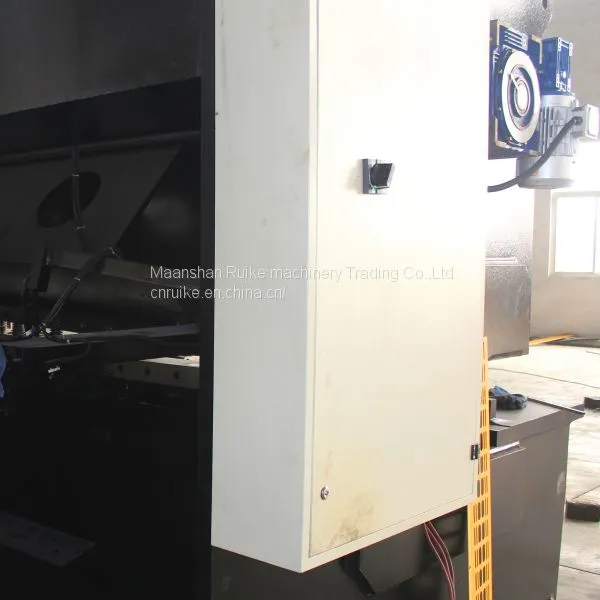

6 x 3200 Hydraulic Swing Beam Shearing Machine photo-3

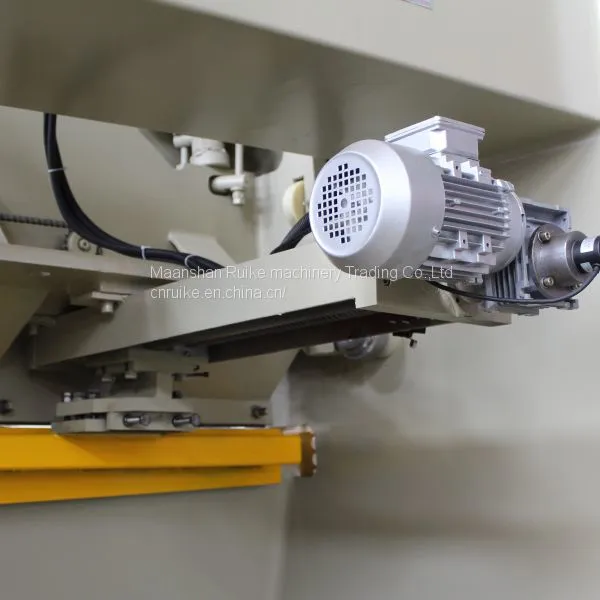

6 x 3200 Hydraulic Swing Beam Shearing Machine photo-4

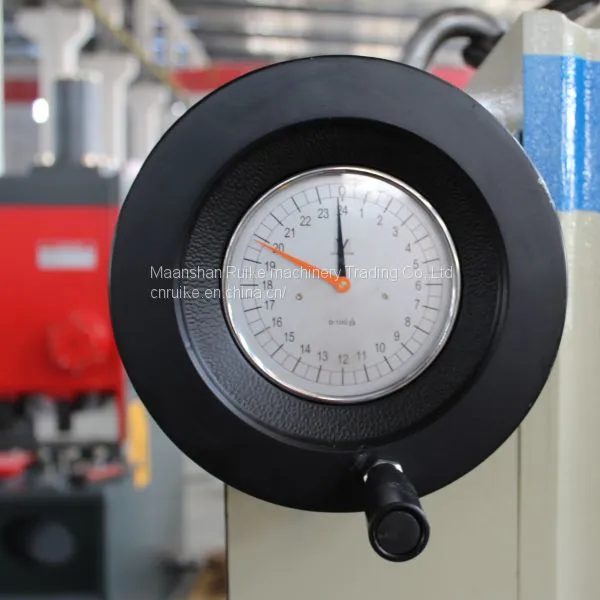

6 x 3200 Hydraulic Swing Beam Shearing Machine photo-5
US$ 8000 - 21000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
huduan
Place of Origin:
China
Model Number:
wd67y
Contact Supplier Request Quote Chat Now
Maanshan Ruike Machinery Trading Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name huduan
Place of Origin China
Model Number wd67y
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Machine Type Press Brake
Extra Services End Forming
Automation Automatic
Power Hydraulic
Material / Metal Processed Stainless Steel
Raw Material Sheet / Plate Rolling


Introduction:

1. The frame is steel welded structure, have sufficient strength and rigidity,

eliminate internal stress and high frequency vibration,

to ensure the overall accuracy of the fuselage.

Has a good rigidity, two cylinders fixed on the left and right columns (wallboard).



2. Shearing machine blades material is 6CrW2Si, high quality materials ,

upper-blades two edges, lowe-blades four edges can be used.

our blades is shanghai brand, just 3/1000 feedback, long service life.

All heat-treated, to ensure that it has sufficient hardness and long service life.


E21S NC features:


Backgauge control

Control for general AC motors,frequency inverter

Intelligent positioning

Double programmable digital output

Stock counter

Program memory of up to 40 programs,up to 25 steps per program

One side positioning

Retract function

One key backup/restore of parameters

mm/inch

Chinese/English



Technical parameter:


Specification

 6x3200

Shearing thickness

   (mm)

Mild Steel

 45Kg/mm2

6

Stainless Steel

 60Kg/mm2

4.5

 Aluminum

 30Kg/mm2

9

Shearing Length(mm)

3200




Shearing Angle

1°30'

Throat depth(mm)

100

Backgauge

Stroke mm

20-600



Speed mm/s

50



Accuracy mm

±0.2



Motor Power KW

0.37

Stroke Times

≥12

Main Motor Power(KW)

7.5

No.& Length of Supporting Arm

3*800

Outline Dimension

Length(mm)

3840



Width(mm)

1710



Height(mm)

1620

Weight(kg)

5500


Product Tags: shearing machine , swing beam shearing machine , 6*3200 cutting machine
