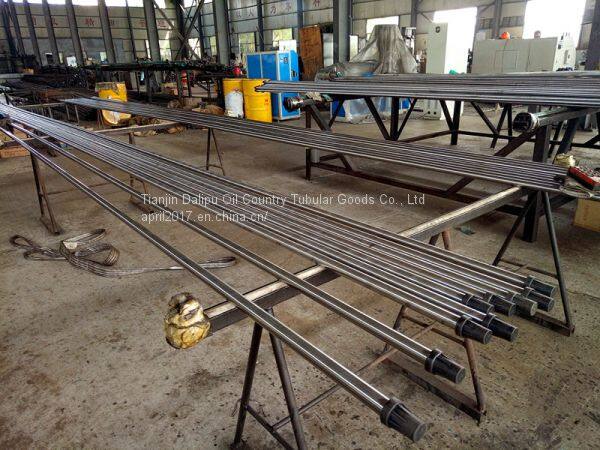

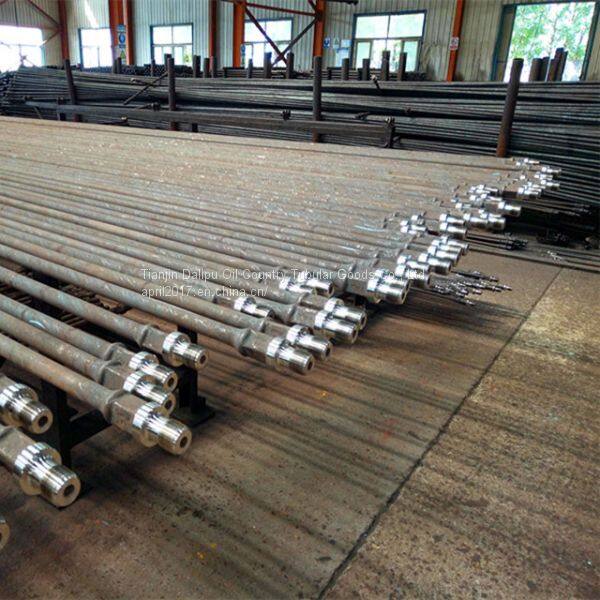

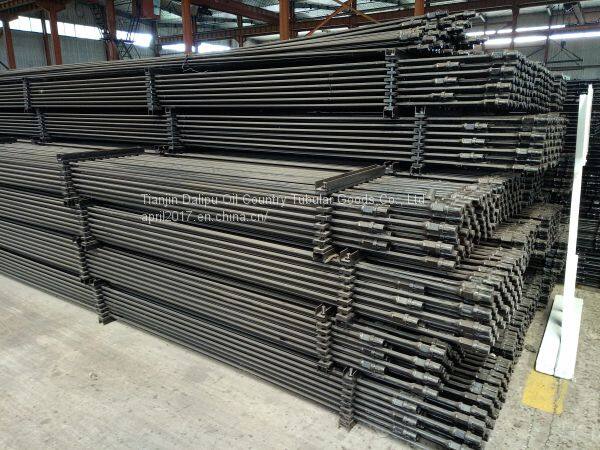

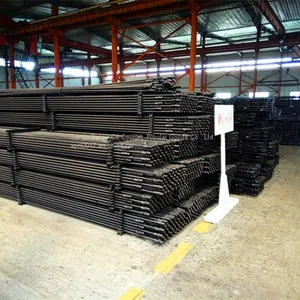

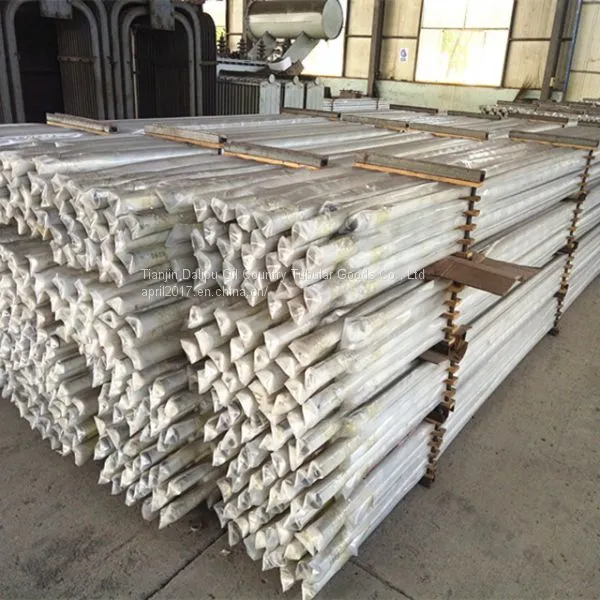

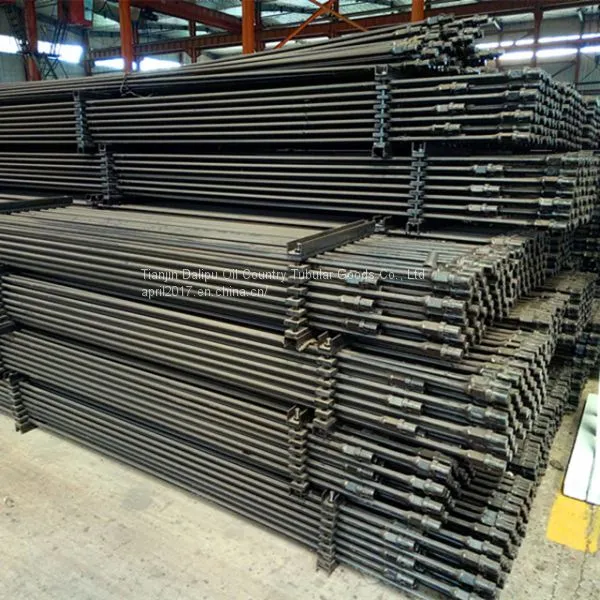

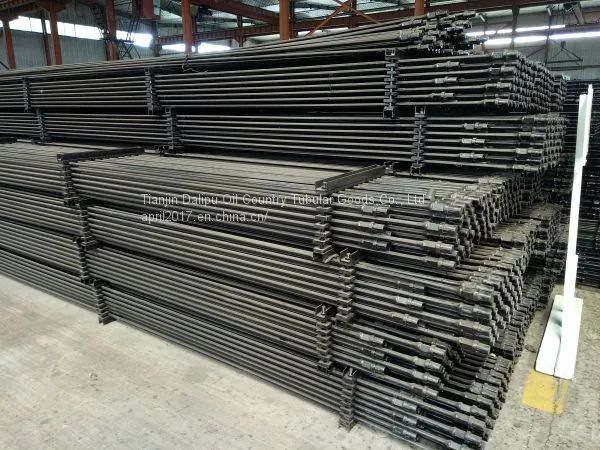

Drill Used Oil Drilling Steel Sucker Rod price
Our conventional sucker rods are API monogrammed.
Grade C sucker rod ,Moderate strength, not susceptible to sulfide stress cracking, suitable in sour medium.
Grade D sucker rod, Made of quality heat treated steel alloy, with high tensile and yield strength; suitable for non-corroding or mildly corroding environment.
Grade K, KD sucker rod, With good corrosion resistance in H2S, CO2 and NaCl media, superior tensile strength.
Grade HL and HY sucker rod, High strength; structure and size matching with grade D sucker rod; withstanding 966-1, 136 MPa (140, 000-164, 720 psi); suitable for deep and large displacement
wells.
Sucker Rod Specifications
|
Size in (mm) |
Rod Body diameter in (mm) |
diameter of ext. thread |
Full size Coupling OD mm (in) |
Coupling OD mm (in) |
Wrench square W*L mm (in) |
Length series m (ft) |
5/8 (16) |
5/8 (15.88) |
15/16 (23.81) |
38.10(1.5) |
31.8 (1.25) |
22.2×31.8 (7/8×1-1/4) |
7.62 (25) |
3/4 (19) |
3/4 (19.05) |
1-1/16(26.99) |
41.28(1.625) |
38.1 (1.5) |
25.4×31.8 (1×1-1/4) |
9.14 (30) |
7/8 (22) |
7/8 (22.23) |
1-3/16 (30.16) |
46.0(1.812) |
41.3 (1.625) |
25.4×31.8 (1×1-1/4) |
0.6 (2), 1 (3) |
1 (25) |
1 (25.40) |
1-3/8 (34.93) |
55.6(2.187) |
50.8 (2) |
33.3×38.1(1-5/16×1-1/2) |
2 (6), 3 (10) |
1-1/8 (28) |
1-1/8 (28.58) |
1-9/16 (39.7) |
60.33(2.375) |
57.2 (2.25) |
38.1×41.3 (1-1/2×1-5/8) |
