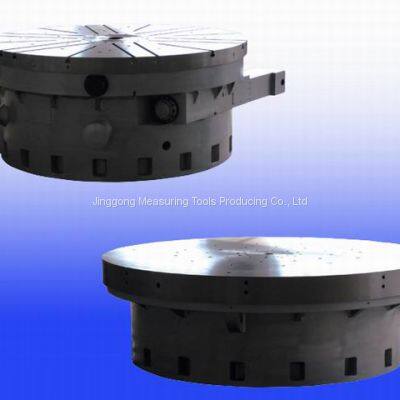

NC Coordinate Rotary Tables

Name: NC Coordinate Rotary Tables
Brand: JINGGONG
SKU: 157686968
Availability: InStock

Jinggong Measuring Tools Producing Co., Ltd

US$ 3000 - 10000 MOQ: 1 Piece

Key Specifications

Brand Name:

JINGGONG

Place of Origin:

China

Model Number:

JG83

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

120 days

Brand Name JINGGONG

Place of Origin China

Model Number JG83

Application Turning, milling and grinding of big and heavy components.

Dimensions 2000mm~3000mm

Material Iron

JG83 series NC Coordinate Rotary Tables

Application

Suitable for floor type boring machine, boring-milling machine and face milling machine.

Characteristic

1. This series rotary table has independent transmission system and composed mostly by turntable, saddle and bed piece.

2. This series rotary table is not only gyration, but also could doing the rectilinear motion.

Specifications

No.	Items	JG83-2000x2000	JG83-2400x2600	JG83-2500x3000
1	Turntable size (mm)	2000x2000	2400X2600	2500X3000
1	Turntable size (mm)	2000x2000	2400X2600	2500X3000
2	Total thickness (mm)	1200	1200	1200
3	Center bore diameter (mm)	Φ150H7	Φ150H7	Φ150H7
3	Center bore diameter (mm)	Φ150H7	Φ150H7	Φ150H7
4	Size of T-slot (mm)	28	28	28
5	The transmission ratio of worm gear	1:176	1:220	1:220
6	Total transmission ratio	1:880	1:1200	1:1200
7	Max. speed (r/min)	2.3	2.5	1.67
8	The torque of servo motor (N.m)	38	50	46.5
9	Table graduation angle per pulse	0.001°	0.001°	0.001°
9	Table graduation angle per pulse	0.001°	0.001°	0.001°
10	Static locking torque (N.m) Oil pressure 5MPa	20000	70000	70000
11	Dividing accuracy	6"	6"	6"
12	Largest driving force (torque) (N.m)	20000	30000	30000
13	Bearing capacity (kg)	20000	40000	40000
14	Max. speed in linear motion (m/min)	6	10	6
15	The torque of servo motor in linear motion (N.m)	38	50	46.5
16	Linear move stroke (mm)	1600	2500	2000
17	Positional accuracy (mm/1000mm)	0.025	0.015	0.025
17	Positional accuracy (mm/1000mm)	0.025	0.015	0.025
