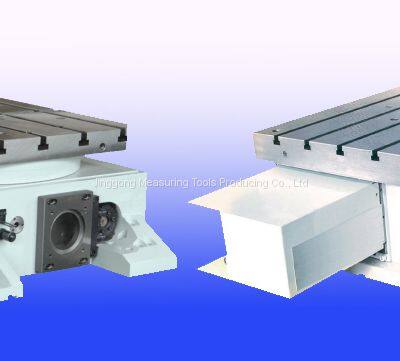

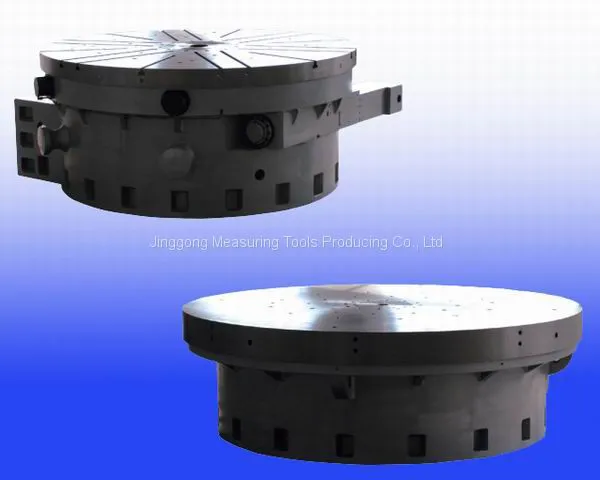

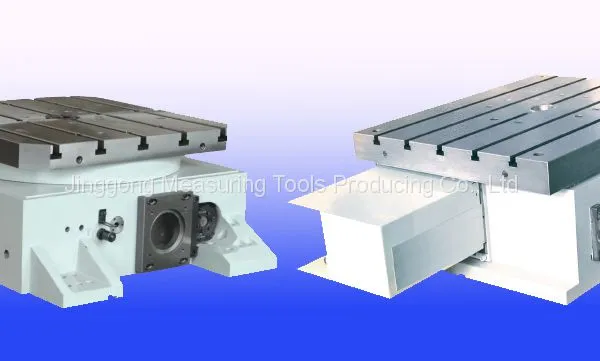

JG12 series Rotary Turning Table
Application
Turning, milling and grinding of big and heavy components.
Specifications
No. |
Items |
JG12-1600 |
JG12-2000 |
JG12-2500 |
JG12-3000 |
1 |
Turntable diameter (mm) |
Φ1600 |
Φ2000 |
Φ2500 |
Φ3000 |
2 |
Total thickness (mm) |
1000 |
1150 |
1100 |
950 |
3 |
Center bore diameter (mm) |
Φ150H7(Φ350) |
Φ150H7 |
Φ150H7 |
Φ280H6 |
4 |
T-slot size (mm) |
12~28 |
12~28 |
18~28 |
NO OR 28 |
5 |
The transmission ratio of worm gear |
1:180 |
1:176 |
1:216 |
1:220 |
6 |
Total transmission ratio |
1:720 |
1:1760 |
1:2160 |
1:1200 |
7 |
Max. speed (r/min) |
4.1 |
1.1 |
1 |
1 |
8 |
Table graduation angle per pulse |
0.001° |
0.001° |
0.001° |
0.001° |
9 |
Standard electromotor |
1FT6105 |
1FT6105 |
1FT6105 |
HF903S |
10 |
Horizontal bearing capacity (kg) |
12000 |
15000 |
20000 |
30000 |
11 |
Max torque capacity of worm gear (N.M) |
15000 |
20000 |
30000 |
30000 |
12 |
Max. rotational inertia of workpiece (kg.cm.s²) |
50000 |
76500 |
159000 |
/ |
13 |
Dividing accuracy |
15" |
20" |
20" |
25"(10") |
14 |
Accuracy of repeatability |
4" |
4" |
4" |
6"(4") |
15 |
Approx. weight (kg) |
9000 |
14500 |
19500 |
22500 |
16 |
The torque of servo motor (N.m) |
≥36 |
50 |
50 |
50 |
Remarks
1. Standard table sizes are from 1600mm~3000mm, others also can be produced according to the customer’s drawings.

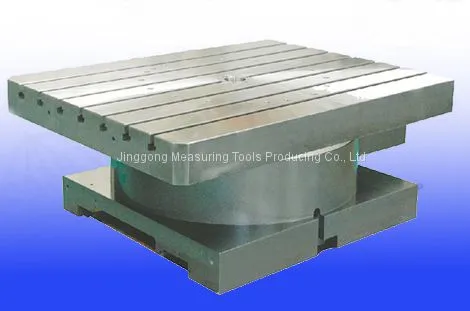

2. Table top could be round or square per your requirements.
3. The motor should be prepared by customers themselves.
Pls visit to know more.
