Introduction:

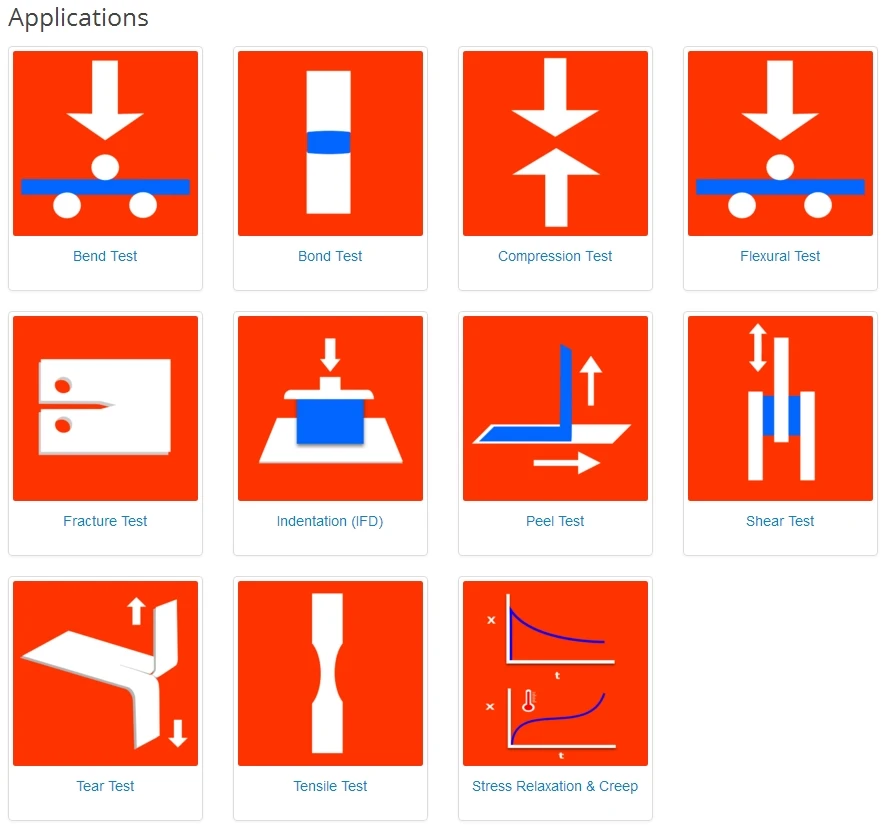

Universal Tensile Testing Machine and Equipment is the double columns pulling and pressure testing machine,which is suitable for testing strength of plastic film, composite materials, soft packaging materials, plastic hose, adhesive, adhesive tape, adhesive sticker, medical patch, protective film, release paper, combination cover, metal foil, nafion, backplane materials, non-woven fabric, rubber, paper fiber and other materials in tension, compression, bending, shearing, tearing and peeling, puncture, three point bending condition and relevant physical parameters.
This machine is Widely used in textile manufacturing, furniture manufacturing industry related materials, all kinds of wire mesh, adhesive sticker pressure sensitive adhesive tape, film materials, medical electronic equipment protective film related industries.

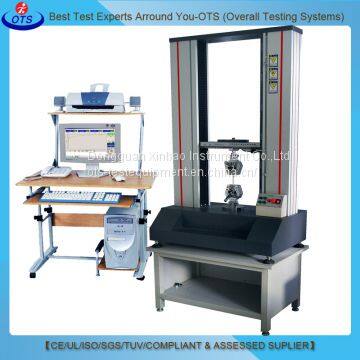

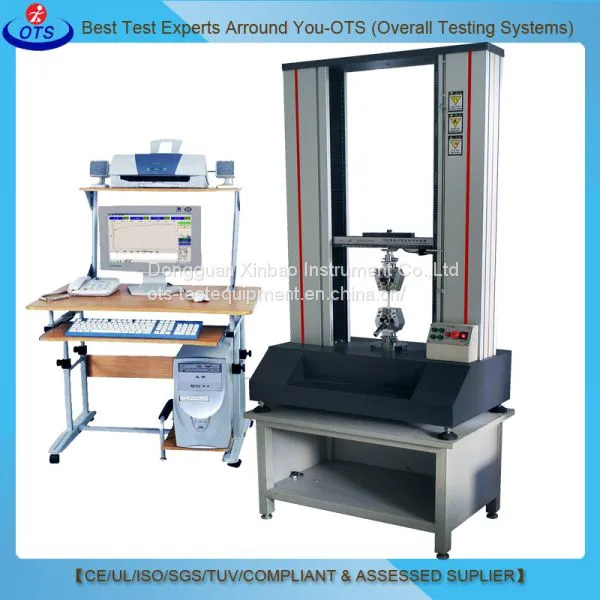

Universal Tensile Testing Machine and Equipment
| Model | XB-OTS-600A |
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg, 1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 500kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.01-500mm/min |
| Machine Dimension (W*D*H) | 580*580*1250mm (W*D*H) |
| Power system: | Servo drive + servo motor + precision ball screw transmission (Panasonic or Taiwan king serve import) |
| Weight: | About 65kg |
| Power : | 1 phase 220V 50Hz |
| Packing | Standard Export plywood case |
| Displacement Control: | Displacement encoder count with four frequency technology |
| So that the displacement of four times | |
| the resolution can up to 0.0005mm |
Corresponding Standard:
ASTM D903,GB/T16491,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7 ,GB 13022,GB 8808,GB 1040,GB 4850,GB 7753/7754,GB 453,GB/T 17200,GB/T 16578,GB/T 7122,GB/T 17590,ASTM E4,ASTM D828,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 and other standards.
OTS was established in 1978, with 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Please feel FREE to contact us if you have any needs.
