Applicable Industries:
Programmable High Low Temperature Shock Impact Test Equipment used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm.
The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., can be used as the basis of its product improvement or reference.
Inner size selection
| Model | XB-OTS-50 | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 |
| Inner size WxHxD(cm) | 36×40×35 | 40×50×40 | 50×60×50 | 60×75×50 | 80×85×60 |
| External size WxHxD(cm) | 138x180x155 | 150X190X160 | 190x200X195 | 210x220X205 | 225x250x220 |
Detail Specification
| Shock Temperature ragne | -65°C~150°C |
| Heating up time | RT~200°C about 35min |
| Cooling down time | RT~-70°C about 90min |
|
Temp recover time/ change time |
≤5min / ≤10sec |
| Temp control accuracy | ±0.5°C / ±2.0°C |
| distribution accuracy | |
| Inner materials | SUS 304# stainless steel plate for inner chamber,and stainless steel plate |
| + spray painting for external chamber. | |
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. |
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. |
| Cooling systems | Semi-hermetic two-stage compressor (water-cooled) / |
| hermetic two-stage compressor (air-cooled). | |
| Safety devices | Fuse switch, high and low pressure protection switch compressors, |
| refrigerant pressure protection switch failure warning system, electronic siren. | |
| Fitting | Outlook window (special purchase), the upper and lower adjustable |
| compartment two energized measured line hole, casters,level bracket. | |
| Power | 3 phase AC380V 50HZ/60HZ |

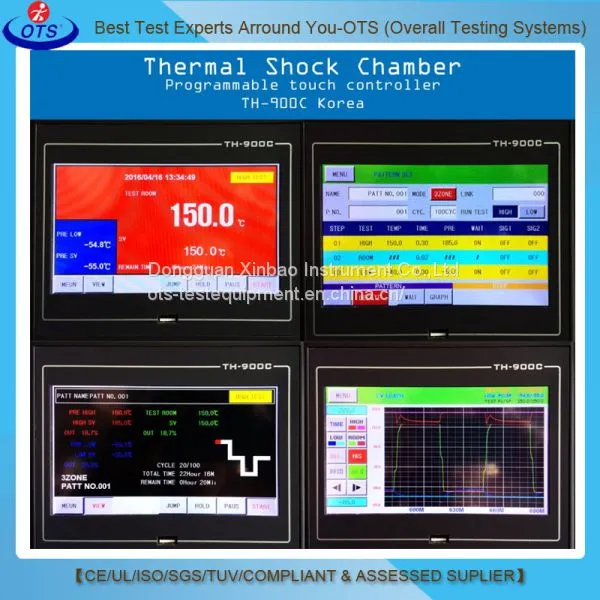

| Controller | Tanwan TATO or TH900C |
| Compressor | Germany Bitzer Brand |
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
OTS Instrument Co., Ltd.
was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
