Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine

Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine thumbnail-1
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine thumbnail-2
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine thumbnail-3
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine thumbnail-4
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine thumbnail-5
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine photo-1

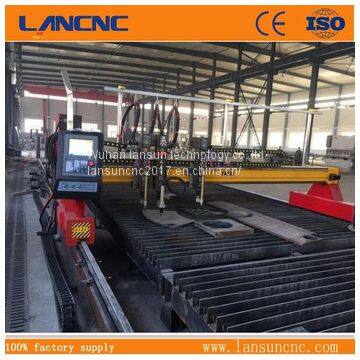

Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine photo-2
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine photo-3
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine photo-4
Bangladesh steelFactory Supply Cnc Flame and Plasma Cutting Machine photo-5
US$ 4990 - 9900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lansun
Place of Origin:
China
Model Number:
ZLQ-10A
Contact Supplier Request Quote Chat Now
Wuhan Lansun Technology Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lansun
Place of Origin China
Model Number ZLQ-10A
Certification CE & ISO 9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 month
Weight 1500kg
Dimension(L*W*H) 3*6*2
Voltage Machine 220V, plasma 380V
Rated Power 500W/800W/1000W
Condition New
Our Company

20  years CNC cutting machine manufacturing;
9  years Alibaba supplier; 5000 +  customers Choice;
> Our own R & D team, customized according to your needs;
> China's famous brand, fast delivery,cheap price;
> Total quality management system.
Wuhan Lansun CNC cutting machine, To Be your reliable business partner!

Product Description
Cutting method Guide：

1、Flame cutting： Suitable for cutting carbon steel larger than 20mm；

2、Plasma cutting：Plasma cutting cost is 1/3~1/2 of flame cutting；So the plasma is suitable for cutting carbon steel within 20mm；

3、Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting。
Model
ZLQ-10A
Cutting Mode
Plasma
Flame
Flame and Plasma
Driving Mode
Servo motor or stepper motor , Dual-side
Cross beam Width(m)
3m/3.5m   or customize
effective Working Width(m)
 1m less than track width
Guide rail Length (m)
According to your cutting demands
effective working length (m)
2m less than guide rail length
Flame Cutting thickness(mm)
 5-200 (specific type up to 300)
Plasma Cutting thickness(mm)
According to the plasma generator, common 1-30mm
Number of Cutting Torch
At customers’ requests
Cutting Speed (mm/min)
50-8800
Running speed (mm/min)
12000
NC Controller
LANSUN or other China or import System you want
Plasma Power
100A ,120A , 200A ,300A ect .  China , USA brand
Programming software
China or Australia professional nesting software
Operation language
English or Chinese or Russian
Other Data
Working temperature
- 10°C -45°C
Humidity
Surroundings
Ventilation, no big shake
Power voltage
3×380V±10% or up by user’s local condition
Detailed Images
Machine Parts

Machine body structure
1.Box weldment structure process tempering
2. Excellent rigidity and intensity.
3.Single drive adopts three-point fix structure.
4.Dura drive adopts symmetrical structure.


Transmission
1.Rack and gear mesh transmission.
2.Gear box: SEW, high output torsion low noise.
3.Horizontal torch transmit by steel belt.
4. These devices are durable and long life device.


Drive Model: Japan AC servo motor

High stability of walking

Convenient maintenance


GUIDE RAIL
Material :U71Mn
Intensity:No less than700N/mm²;
Loading capacity no less than = 10T(per meter),
Rail tensile strength no less than 883Mpa,
Compression strength no less than 1000T.
Process mode:High precision grinder.
Longitudinal rack accuracy :7grade
Unit length:1.0M
Pitch:CP6

HEIGHT CONTROLLER

Torch carrier and torch :
Torch carrier assembly including:
Motor
Lifting device
Torch, holder
Gas valve
Flashback arrester


CNC System :
1).10.4 inch LCD display
2).USB port support, figures display
3).Indicator lights showing working condition
4).Operation menu displayed instantly on monitor
5).Easy figures programmed directly
6).Don't be interfered by the electro magnetic wave, etc
7).Pause, forward, backward, and movement while machine working

Plasma source option


Processing equipment
Packing & Delivery

Standard export wooden case

Delivery time : 3 working days


Product Tags: cheap cnc plasma cutting machine prices , cheap plasma cutting machine , cnc flame and plasma cutting machine
