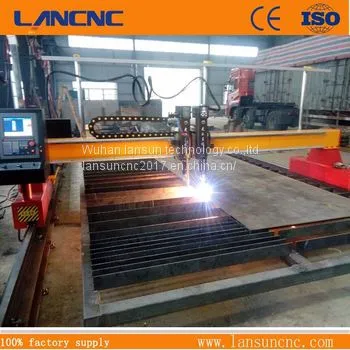

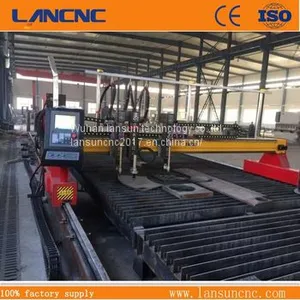

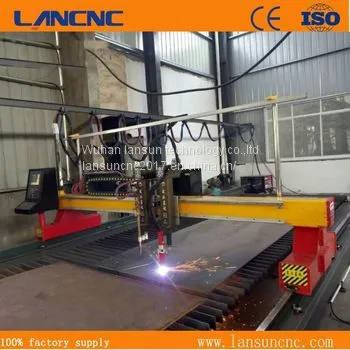

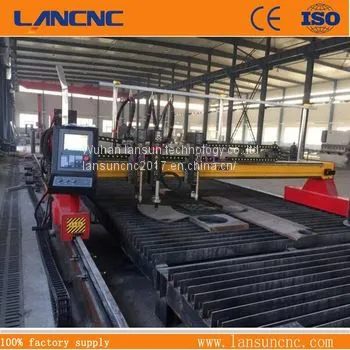

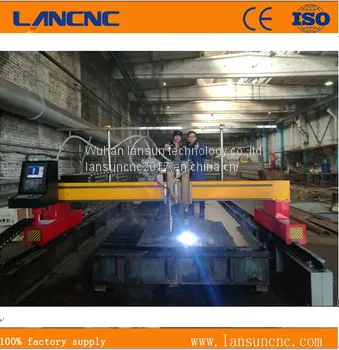

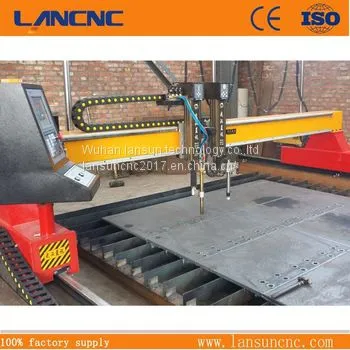

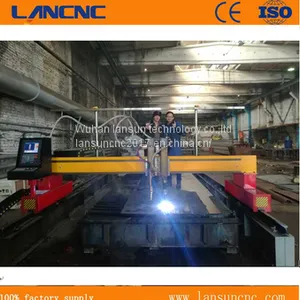

63A/100A/120A/160A/200A optional power supply automatic low cost cnc plasma cutting machine

Name: 63A/100A/120A/160A/200A optional power supply automatic low cost cnc plasma cutting machine
Brand: Lansun
Price: USD $4990 - 9900 / Set

FOB Price

USD $4990 - $9900 / Set

1 Set(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Lansun	Place of Origin:	China	Model Number:	ZLQ-10A
Certification:	CE & ISO 9001	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 month
Weight:	1500kg	Dimension(LWH):	362	Voltage:	Machine 220V, plasma 380V
Rated Power:	500W/800W/1000W	Condition:	New

Product Description

Our Company

20 years CNC cutting machine manufacturing;
9 years Alibaba supplier; 5000 + customers Choice;
> Our own R & D team, customized according to your needs;
> China's famous brand, fast delivery,cheap price;
> Total quality management system.
Wuhan Lansun CNC cutting machine, To Be your reliable business partner!

Product Description

Cutting method Guide：

1、Flame cutting： Suitable for cutting carbon steel larger than 20mm；

2、Plasma cutting：Plasma cutting cost is 1/3~1/2 of flame cutting；So the plasma is suitable for cutting carbon steel within 20mm；

3、Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting。

Model	ZLQ-10A
Cutting Mode	Plasma	Flame	Flame and Plasma
Driving Mode	Servo motor or stepper motor , Dual-side
Cross beam Width(m)	3m/3.5m or customize
effective Working Width(m)	1m less than track width
Guide rail Length (m)	According to your cutting demands
effective working length (m)	2m less than guide rail length
Flame Cutting thickness(mm)	5-200 (specific type up to 300)
Plasma Cutting thickness(mm)	According to the plasma generator, common 1-30mm
Number of Cutting Torch	At customers’ requests
Cutting Speed (mm/min)	50-8800
Running speed (mm/min)	12000
NC Controller	LANSUN or other China or import System you want
Plasma Power	100A ,120A , 200A ,300A ect . China , USA brand
Programming software	China or Australia professional nesting software
Operation language	English or Chinese or Russian

Other Data
Working temperature	- 10°C -45°C
Humidity	<90%, no condensation
Surroundings	Ventilation, no big shake
Power voltage	3×380V±10% or up by user’s local condition

Detailed Images

Machine Parts

Machine body structure
1.Box weldment structure process tempering
2. Excellent rigidity and intensity.
3.Single drive adopts three-point fix structure.
4.Dura drive adopts symmetrical structure.

Transmission
1.Rack and gear mesh transmission.
2.Gear box: SEW, high output torsion low noise.
3.Horizontal torch transmit by steel belt.
4. These devices are durable and long life device.

Drive Model: Japan AC servo motor

High stability of walking

Convenient maintenance

GUIDE RAIL
Material :U71Mn
Intensity:No less than700N/mm²;
Loading capacity no less than = 10T(per meter),
Rail tensile strength no less than 883Mpa,
Compression strength no less than 1000T.
Process mode:High precision grinder.
Longitudinal rack accuracy :7grade
Unit length:1.0M
Pitch:CP6

HEIGHT CONTROLLER

Torch carrier and torch :
Torch carrier assembly including:
Motor
Lifting device
Torch, holder
Gas valve
Flashback arrester

CNC System :
1).10.4 inch LCD display
2).USB port support, figures display
3).Indicator lights showing working condition
4).Operation menu displayed instantly on monitor
5).Easy figures programmed directly
6).Don't be interfered by the electro magnetic wave, etc
7).Pause, forward, backward, and movement while machine working

Plasma source option

Processing equipment

Packing & Delivery

Standard export wooden case

Delivery time : 3 working days
