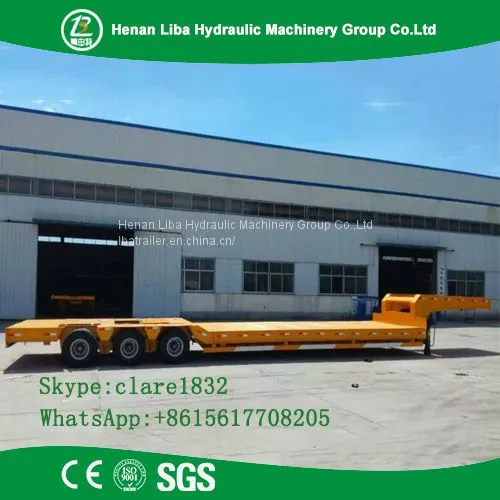

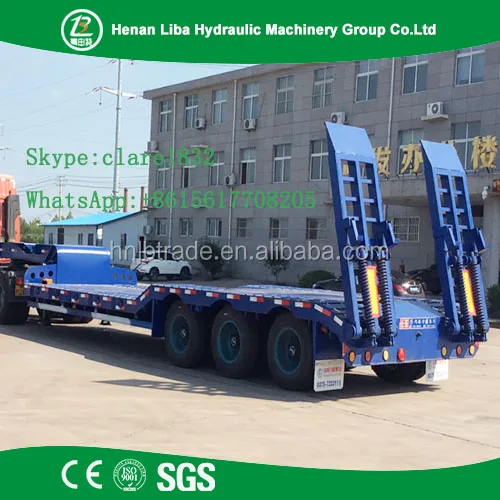

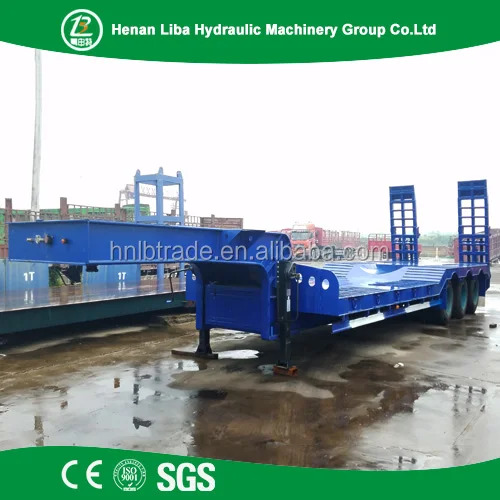

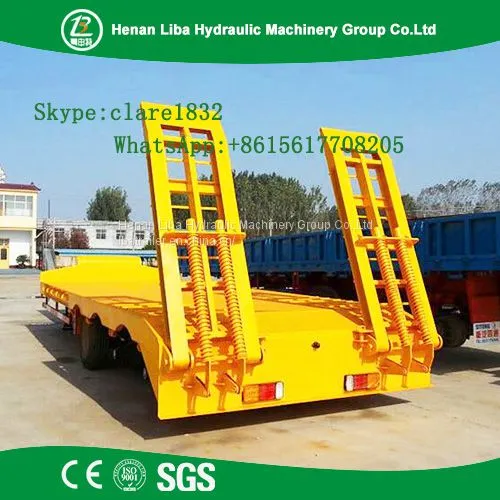

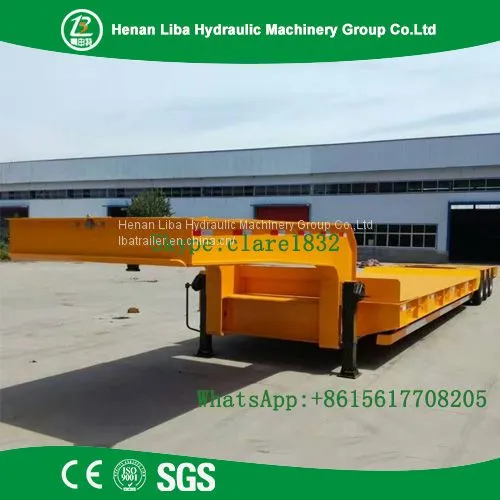

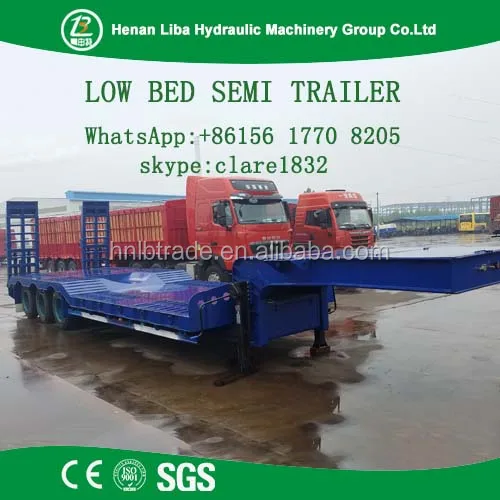

60t Heavy Loading 3 Axle Excavator Shipping Semi Trailer Trucks , High Quality Lowbed Semi Trailer
| Main Configuration | |||
| Weight (KG) | Tare Weight | 10000 | |
| Load Weight | 50000 | ||
| Total Weight | 60000 | ||

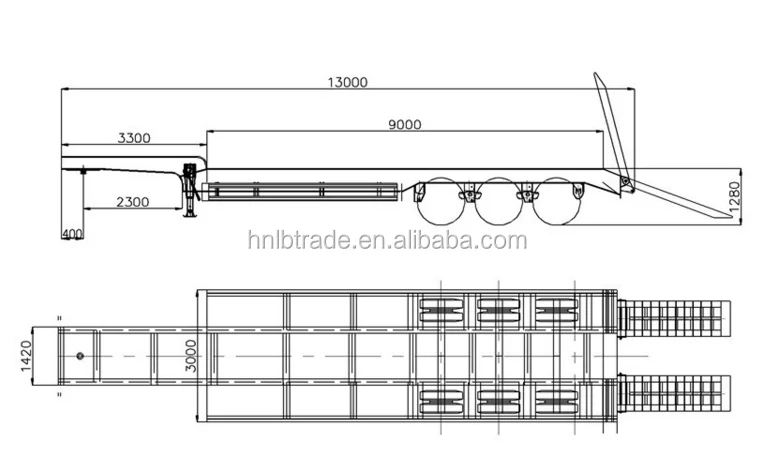

| Dimensions (LxWxH) | Overall Dimensions | 13000x3000x1550 mm | |
| Main Frame | |||
| Main Beam Material | Q345B steel | Main Beam Height | 500mm |
| Upper Plate | 20mm | Lower Plate | 20mm |
| Web Plate | 12mm | Platform | 4mm |
| Side Beam | 25# I beam | ||
| Running Gear | |||
| Axle | 3*13Ton Fuwa axle | Suspension | Leaf spring suspension |
| Tyre | 12*1100R20 | Rim | 12*8.0-20 |
| Landing Gear | 28Ton Lengthen type leg | King Pin | 2" or 3.5" bolt-in or welded king pin |
| Brake System | |||
| Type | Pneumatic brake | Brake Chamber | Six double chambers |
| Relay Valve | Wabco relay valve | ABS System | Optional |
| Electrical System | |||
| Lamps | A full set of LED lights | Voltage | 24V |
| Receptacle | 7 ways | ||
| Accessories | |||
| Tool Box | Equipped one set with basic tools | Spare Wheel Carrier | One or two |
| Side Guard | 2 units of side guards | Ramp | A pair of mechanical ramp |
1. Low flatbed semi-trailer has flatbed, concave and tire exposed beam structure , stringers using straight type or gooseneck type. It is with ladder-type frame , stringer-shaped cross-section, with a high stiffness and high strength .
2. Lower main plane of the frame dock to ensure the smooth transportation ,fit to carry all kinds of engineering machinery , large equipment and steel .

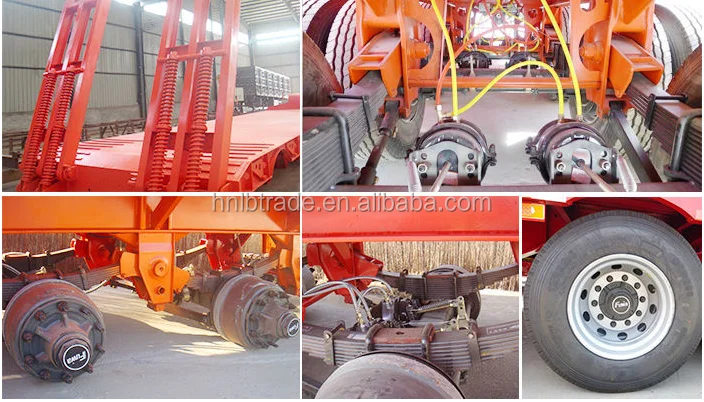

3. Using triaxial balanced type suspension, balanced biaxial suspension or rigid suspension , mass balance blocks are being fitted between the front and rear leaf spring that enable the force balance to both front and rear axles , etc .;
Company Information
Henan Liba Hydraulic Machinery Group Co., Ltd is located in the middle west part of Henan Province. Liba Group is mainly engaged in the production of and sales of light-duty semitrailers and special vehicles and customized products.
Liba Group was established in Runan Industry Cluster Area in 2010, covers approximately 340,000 square meters. Liba Group is listed as the key construction project by Henan Provincial government, and Liba Group has obtained the ISO9001-2008 quality management system certificate and China Compulsory Certification(3C), parts of Liba products have been obtained nationwide industrial production permission.
"Integrity, innovation, truth-seeking and development" are the slogon of Liba Group.
We will continuously improve product's quality and after services; Finally win-win with our clients is our target!
FAQ
Q1. What information should I tell if I want to get a quotation?
Pls tell your transport purpose, road condition, cargo type, weight of your cargo, dimensions of trailer,quantity etc.
The more info you provide, the more accurate model and price we can supply.
Q2. Are you a manufacturer or a trader?
Both. We have been a semi trailer manufacturer since 2010.
We can produce according to your requirements,the size, color, materials, logo etc.
Q3. How do you transport the semi trailers?
We transport the semi trailers by bulk or container.
Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
Q4. What is your after-sale service?
12 month warranty.
Provision with relevant technical support.
Available spare parts after ordering.
Contact Info
Warmly welcom to visit~~~
Kinds of semi trailers are available~~~
Send your inquiry without hesitation, you'll get the most favoralbe price~~~
