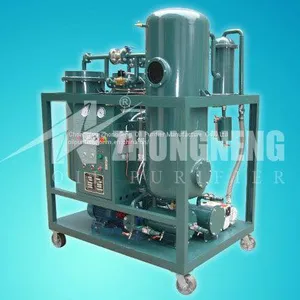

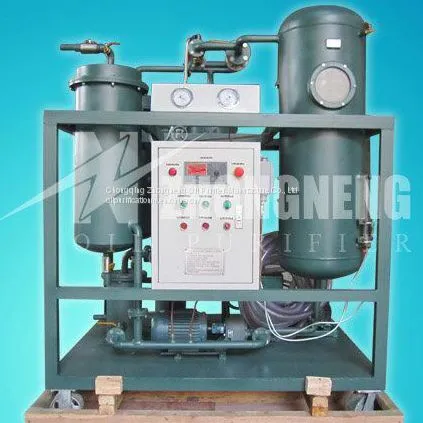

Help CenterWheels Type Oil Filtration Machine, Waste Oil Recycling Plant for Turbine Oil
Related Products
-
Waste Engine Oil Recycling Machine, Black Oil Distillation PlantUS$ 20000 - 60000MOQ: 1 Piece -
Waste Oil Recycling Plant, Used Engine Oil to Diesel Distillation MachineUS$ 5000 - 20000MOQ: 1 Piece
-
Waste Oil Purification Machine, Oil Filtration System, Oil Recycling for ImpurityUS$ 1500 - 5000MOQ: 1 Piece
-
TYA Lubricant Oil Purification Machine, Waste Oil Recycling Machine, Oil Filtration SystemUS$ 5000 - 20000MOQ: 1 Piece
-
600L/H Waste Oil Recycling Plant, Transformer Oil Refinery/Oil Filtration MachineUS$ 3000 - 20000MOQ: 1 Piece
Application:
TY-M is our mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distanceworking in field. According to fieldwork requirement, it can be easy to move to any work point by traction. It is special suitable for purifying the transformer oil which locate in different fields. This oil purification plant is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This product, which can rapidly and effectively remove the water, gas and impurities, aim at turbine oil’s nature of high water content, easy emulsifiable and high impurity content, and make the oil recover the new oil’s nature.
Features:
1. Breaking emulsification thoroughly with high- molecule polymeric material, the value of breaking emulsification ≤15min (GB/F 7305).
2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.
3. With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
4. With the trapezoidal, spiral, automatic back flushing system.
5. With the advanced dielectric condensation devices.
6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.
Advantages:
This machine breaks emulsification thoroughly, and the oil is very difficult to emulsify again after treatment. Its dehydration volume is large and it can absorb water on line. TY series, which prevent lubrication system from damage, can effectively extend the lifetime of oil and protect turbine and other machines.
Parameters Data
Item |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
Flow rate |
Liters/hour |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
24000 |
|
Working Vacuum Degree |
MPa |
-0.06 ～-0.095 |
||||||||
Working Pressure |
MPa |
≤ 0.3 |
||||||||
Temperature Range |
℃ |
20 ～80 |
||||||||
Water content |
PPM |
≤50 |
||||||||
Impurity content |
μm |
≤5 |
||||||||
Gas content |
% |
≤0.1 % |
||||||||
Cleanness |
NAS |
≤6 grade (NAS1638) |
||||||||
Demulsification value |
min |
≤15 (GB/F 7305) |
||||||||
Power Supply |
3 Phase, 50 Hz, 380V (or as per requirement) |
|||||||||
Heating power |
kW |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
|
Total power |
kW |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
|
Inlet/outlet caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
kg |
400 |
450 |
500 |
600 |
700 |
900 |
1050 |
1550 |
|
Dimension |
Length |
mm |
1280 |
1350 |
1350 |
1400 |
1500 |
1500 |
1600 |
1800 |
Width |
mm |
750 |
900 |
950 |
950 |
1000 |
1200 |
1350 |
1400 |
|
Height |
mm |
1450 |
1450 |
1500 |
1600 |
1650 |
1800 |
1800 |
1850 |
|
