Stainless Steel Oil Drain Valve API Adaptor Fuel Unloading Valve

Name: Stainless Steel Oil Drain Valve API Adaptor Fuel Unloading Valve
Brand: Huate
SKU: 157446606
Availability: InStock

US$ 288 - 368 MOQ: 1 Piece

Key Specifications

Brand Name:

Huate

Place of Origin:

China

Model Number:

HT.XYF806-100SS

Hubei Huate Special Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan

Delivery Detail:

5 days

Brand Name Huate

Place of Origin China

Model Number HT.XYF806-100SS

Material Alloy

Application Other, Bottom Tank

Structure Control

Standard or Nonstandard Standard

Pressure High Pressure

Power Manual

Port Size 4"

Media Oil

Temperature of Media Normal Temperature

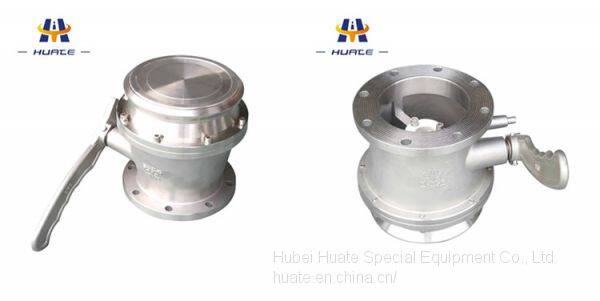

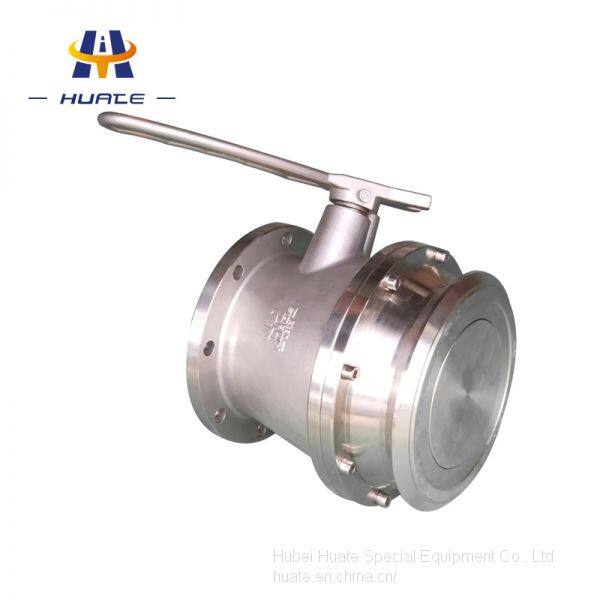

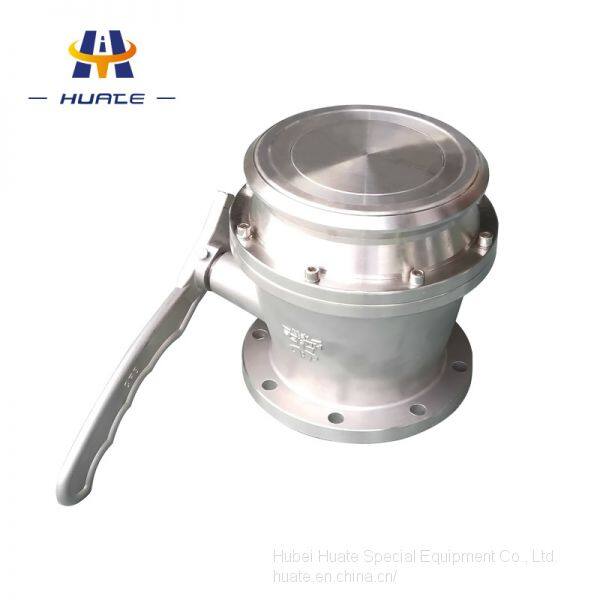

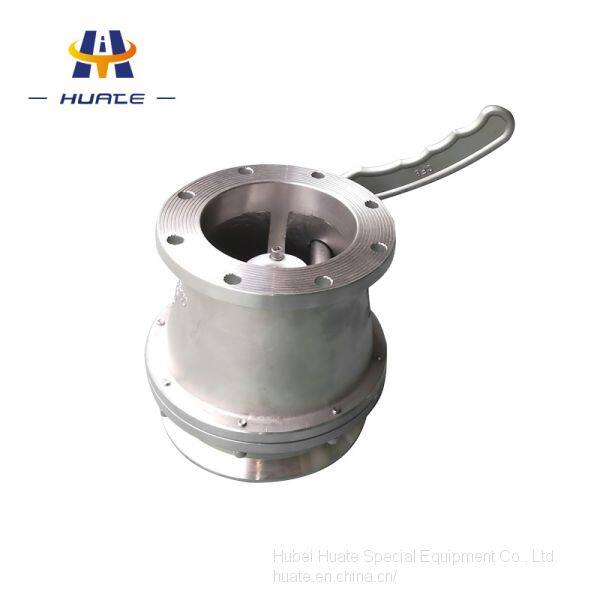

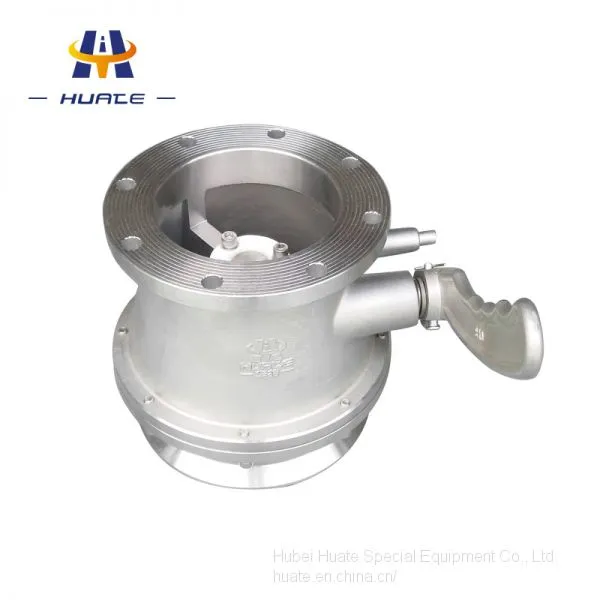

Stainless steel oil drain valve API adaptor fuel unloading valve

Products description:

The unloading valve (also known as A P I valve) is installed at the bottom of the tank side.
Using quick joint connection, quick unloading, the bottom filling oil Important parts can achieve fast separation without dripping leakage, It is safe and reliable.
It is match up with standard GB18564.1-2006.

Features:

The surface of stainless steel is dealed with hard oxidation, which greatly improves its service life.
It is made of stainless steel and is High temperature and corrosion resistance.
We have aliuminum alloy and stainless steel these two kinds material.
Our products meet the standards: API RP1004.
It is can match up with all API standard connectors.
Operating style: Hand-operated.
Max flow: 2500L/min.
Working pressure: 1.6MPa.
Temperature range: -20 to 250 °C
