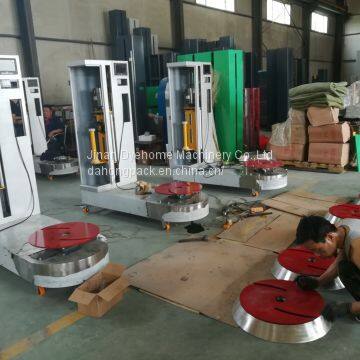

Airport luggage baggage wrapping machine
Luggage wrapping machine is a machine for packing luggage 、baggage、suitcase and cartons at the airports site、passenger terminals、hotel、express logistics or any other transport hubs. It is designed to increase the security of the luggage during the transportation by protection against: pilferage, smuggling, damages, accidental openings, dust and humidity, scratches and any other accidents which can happened during the movement of the luggage over the conveyer belt system。
Operation method:The machine is a movable and manually operated rotary turntable device use
stretch film to wrap the luggage .The operator placed the luggage on the
platform and adjusts vertical rods to secure bag according the luggage's
size .Then begin the wrap process, the operator press start button on control
panel pack the luggage by a 3 to 5 layers of stretch film. The operator cuts film
tail and removed from the turntable. The machine is ready to accommodate the
next piece of luggage
LP Series Airport luggage wrapping machine | |
Size of the product to be wrapped | |
Wrapping size(L XWxH) | (250-1200)*(200-500)*(250-800)mm |
Counter | Two type:1. To check how many baggage pack total 2.To check how many baggage pack everyday |
Load capacity | 100kgs |
Film Carriage | |
Carriage | Powered pre-stretch film carriage, stretch ratio up to 250%,more save the stretch film. Carriage door opens for effortless roll change and thread film Film tension adjustable |
Machine Specification | |
Turntable rotation speed: | 3-36rpm adjustable |
Turntable diameter | 500mm |
Turntable height | 400mm |
Carriage Up/down speed | Adjustable |
Power supply voltage | 220/110 Volt 1 Ph - 50 Hz |
Power | 0.75Kw |
Packing efficiency | 40-60 luggage/hour |
Machine size | 1650mm x 600mm x 1700mm (LXWXH) Standard |
Machine weight | 245kg |
Stretch Film Roll detail | |
Max. external diameter (D): | 200 mm |
Internal diameter (d): | 76 mm |
Film roll height (h): | 500 mm |
Film thickness: | 17-35 µm |
Option | |
With screen: to check how to operate the machine;put advertiment | |
With foot pedal | |
Machine color | |
With scale: to check weight of the luggage | |
With camera: remote control,inspect the wrapping area | |
With printer:print weight,date,series no | |
Film carriage:500mm,750mm | |
Company logo print | |
Coin operated | |
Semi-auto type: without PLC control; General painting type; Simple operation type | |
With battery;two units,4pcs batteries.Last 4-6hours | |
Features:
With PLC control, automatic operation/ manual operation exchange
With baking finished and stainless steel, Design beautiful. Special used in the airport, Can caught more people to wrap the luggage by this machine.
With integrated film carriage, steady and reliable
With special turntable, more wrapping, more clamping the baggage
With counter to check how many luggage wrapped.
Safety regulations are covered by Emergency stop and control switchers on the main doors of the machine for power cut off in some cases, including safety regulation labels showing the possible risk of accidents during the operation.
Machine is supplied with manual instructions and CE marks.
How to Pack
Our service
one year guarantee for the machine(except for the consumabl parts)
24 hours technical support by email/phone
calling or door-to-door service
user-friendly English software,user manual and detailed pictures&Videos.
All life’s maintenance
