Automatic reel stretch wrapping machine for paper roll

Automatic Reel Stretch Wrapping Machine

             YP2000F-L   380V/50Hz

1.Machine introduction:

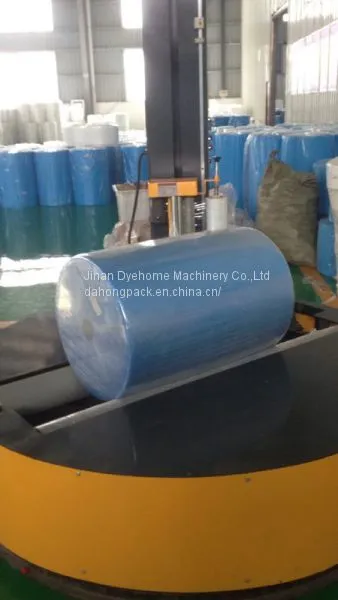

Y Series Reel Wrapper is a machine designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels. It is ideal for reel axial wrapping—across the cylindric diameter then along the longitudinal axis . This packing method can form a cocoon type packing. It is completely Moisture Water & Dust proof packing and protects the products.

2、Technical Parameter

3、Material usage:

Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the baggage.The film is recyclable.Specification:width:500mm,thickness:20-25 microns,length:1500meters,weight: max:16kg,stretchable,one side sticky,transparent or colored.

4、Main technical data of the machine:

Controls

Omron PLC control system, HMI (Human Machine Interfaces) easy to operate

Wrap times can be preset

Film Tension Control adjustment on the panel

Cycle pause capability

0—12RPM variable turntable speed by frequency changer

Variable roller speed by frequency changer

Safety push-pull emergency stop button

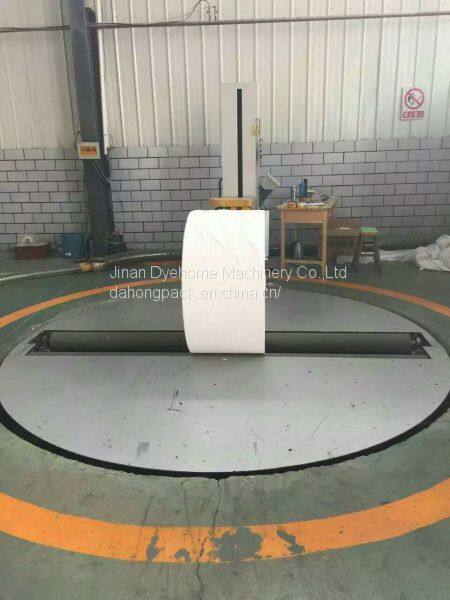

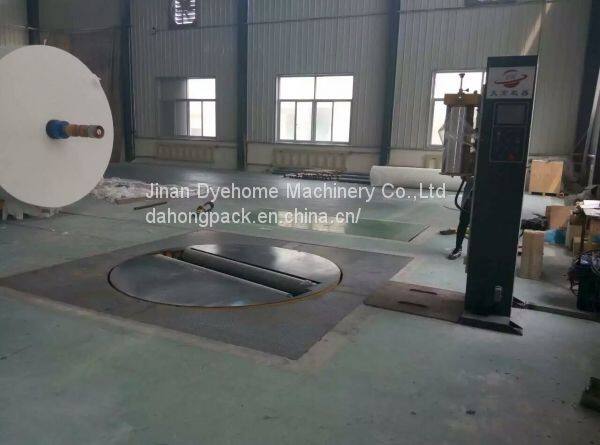

Turntable

2400mm Diameter Structural steel plate

520mm height turntable

Position turntable alignment

Soft start /stop

Heavy duty chain drive

Film Carriage

Powered pre-stretch system up to 250% to min film consumption(Prestretch ratio can be specially made according your requirements.)

Film delivery variable speed by separate DC Drive Motor

Film dancer-bar with variable speed output.
