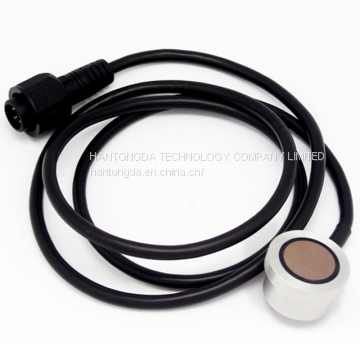

DS1309B is a ultrasonic fuel tank level sensor, featured with non-drill hole on tank by attaching to tank bottom. Easy installation and detecting most liquid (diesel, oil, water...) level with ultrasonic technology.
Features:
1) Measuring precision, measurement resolution is 0.1mm, liquid level measurement accuracy is 1mm.
2) Good stability; 3) Easy to install; 4) Simple application; 5) Strong antistatic ability (EMC);
6) Variety of standard signal output ways, which are analog voltage (1-5V) and current (4-20mA), digital output RS232 and RS485; 7) Alarm output;
Technical parameters:
Data Processor | |||
Operating Voltage |
DC9V-48V |
||
Power supply ripple |
Less than 100mV |
||
Operating current |
Less than 30mA |
||
Measuring distance |
3cm to 100cm; |
||
Resolution |
0.1mm |
||
Measurement accuracy |
0.5% (see note 3) |
||
Temperature compensation range |
-40 ℃- +80 ℃ |
||
Output mode: | |||
Analog output |
Voltage output (default) |
1-5V (corresponding 0-100cm) |
|
Current output (optional) |
4-20mA (corresponding 0-100cm) |
||
Digital output |
RS232(default) |
See the “communication protocol” |
|
RS485(optional) | |||
Anti-theft alarm output |
need external connection a alarming horn to achieve alarm |
||
Install method |
bottom of fuel tank/can, water tank |
||
Material of tank/container |
Iron,aluminum,stainless steel (see note 4) |
||
Thickness of material |
Within 5.5mm |
||
Operating temperature |
-40 ℃ - +80 ℃ |
||
Storage temperature |
-50 ℃ - +100 ℃ |
||
