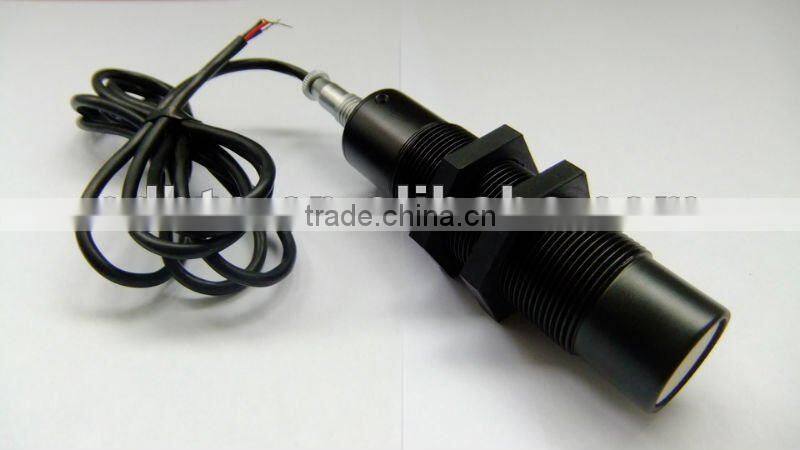

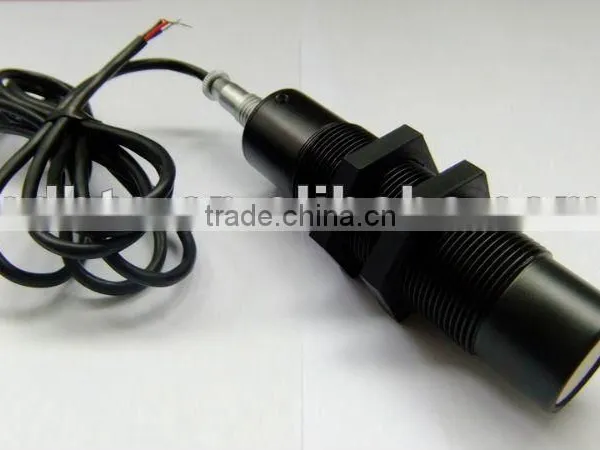

Noncontact Ultrasonic Water Level Sensor

Noncontact Ultrasonic Water Level Sensor thumbnail-1
Noncontact Ultrasonic Water Level Sensor photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
HTW, HTW
Model Number:
HT-U001 HT-U005 HT-U006, HT-U001 HT-U005 HT-U006
Contact Supplier Request Quote Chat Now
Chengdu Huitong West-Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name HTW, HTW
Model Number HT-U001 HT-U005 HT-U006, HT-U001 HT-U005 HT-U006
Usage Level Sensor
Theory Ultrasonic Sensor

Specifications

1. Noncontact
2. Range from 0.1M - 3M
3. Great accuracy (Nom: 1mm)
4. low power consumption;
5. Waterproof & Anti-corrosion

noncontact ultrasonic water level sensor

Features:

High accuracy(Nominal 1mm) and reliability

Completely noncontact  free from any leakage or high corrosion

Suitable with near any kind of  liquid(water, oil, fuel, acid and so on)

Compact, rugged design for easy installation

Minimal maintenance and care

Water/fuel level sensor compatible with most monitoring equipment

Multiple level ranges available from 0.1M to 15M

Dynamic temperature compensation system

Monitors levels in groundwater wells, rivers, streams, tanks, lift stations and open channels

Certificate: CE , ISO9001:2000, Explore proof designed



DATE SHEET

1 . Working  voltage : 12~24VDC

2 . Working current : <60mA

3 . Detection distence : 0.1~15M

4 . Acoustic beam angle : < 10°

5 . Two Modes of signal output : digital signal : RS232,RS485 ;

                                               analog signal : 0-5V,0-10V,10mA-20mA

6 . Working temperature :  -20°C~+55°C

7 . Dimensions :  Φ26mm×28mm(thread)*104mm(Length does not include the plug .)
