Home > Products > TY Series Vacuum Turbine Oil Purifier > Steam Turbine Oil Purification Machine, Used Turbine Oils Filtration Plant

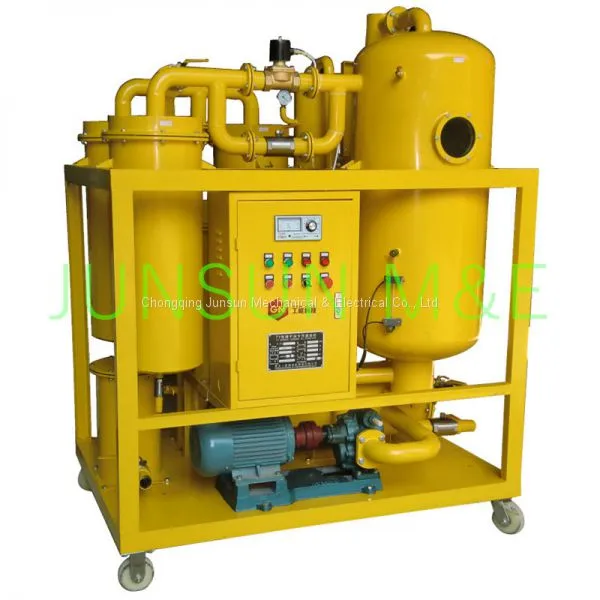

Steam Turbine Oil Purification Machine, Used Turbine Oils Filtration Plant
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 7 days
- Insulating Oil Purifier, Transformer Oil Treatment Machine, Dielectric Oil Filtration Plant
- 2017 Latest High Quality Transformer Oil Dielectric Strength BDV Tester
- Fully Automatic Transformer Oil Breakdown Voltage (Dielectric Strength) Tester
- IEC 60156 Insulating Oil Breakdown Voltage Tester, Dielectric Oil Dielectric Strength Testing Unit
- High Performance 2017 Latest 600LPH Hydraulic Oil Filtration and Dehydration System
- 2018 Newest High Standard Quality Vacuum Dehydration Transformer Oil Treatment Equipment
Product Details
Brand Name: | LONGSUN | Place of Origin: | China | Model Number: | TY |
Certification: | CE, ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 600KG |
Dimension(L*W*H): | 1500*1250*1750MM | Voltage: | 220 - 480V | Usage: | Other, Turbine Oil |
Condition: | New | Power(W): | 50KW | Working Pressure: | 0.3MPa |
Flow: | 600 - 18000LPH |
Product Description
Contact: Andy Zhang
zxy.export@gmail.com
sales@bestoilpurifier.com
Skype: zxy.export
Tel: +86 23 88529890
Mobile (WhatsApp): +86 13696443439
Application:
It is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This series, which can rapidly and effectively remove the water, gas and impurities aiming at turbine oil’s nature of high water content, easily emulsified and high impurity content, make the oil reach new oil standard.
Features:
1.Breaking emulsification thoroughly by means of polymeric material.2.Dewatering high-effectively with once and for two steps dehydrator method, TY series Can thoroughly remove the liquid water, free water and 80% of dissolved water.
3.With zhongneng’s distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by polymeric material, this machine can make the ß3 surpass or equal to 200 and make the cleanness not surpass grade 6 (NAS1638).
4.With the trapezoidal, spiral, automatic back flushing system.
5.With the advanced dielectric condensation devices.
6.On-line oil purification can be carried out with turbine or water turbine automatically without any person.
Advantages:
This machine breaks emulsification thoroughly, and the oil is very difficult to be emulsified again after treatment. Its dehydration volume is large and it can drain off the water on line. TY series, which prevent lubrication system from damage, can effectively extend the lifetime of oil and protect turbine and other machines.
Technical Parameters
Item | Unit | TY-10 | TY-20 | TY-30 | TY-50 | TY-100 | TY-150 | TY-200 | TY-300 | |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Degree | MPa | -0.06 ~ -0.095 | ||||||||
Working Pressure | MPa | ≤0.3 | ||||||||
Temperature Range | ℃ | 40 ~ 70 | ||||||||
Water Content | PPM | ≤100 | ||||||||
Cleanness | NAS | ≤6 grade (NAS1638) | ||||||||
Demulsification Value | min | ≤15 (GB/F 7305) | ||||||||
Heating Power | kW | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 | |
Total Power | kW | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 | |
Inlet/outlet Caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 | |
Weight | kg | 400 | 450 | 500 | 600 | 700 | 900 | 1050 | 1550 | |
Dimension | Length | mm | 1280 | 1350 | 1350 | 1400 | 1500 | 1500 | 1600 | 1800 |
Width | mm | 750 | 900 | 950 | 950 | 1000 | 1200 | 1350 | 1400 | |
Height | mm | 1450 | 1450 | 1500 | 1600 | 1650 | 1800 | 1800 | 1850 |
