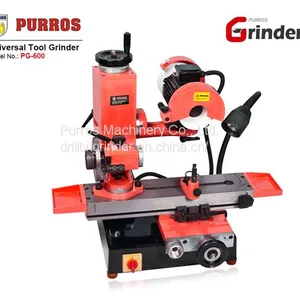

PURROS PG-600 Universal Tool Grinder
Grinding is a delicate process among the different types of machining operations. This operation helps to obtaining finishing to the work material. Universal Tool Grinders are special grinding equipments that are specially designed to give finishing to different types of tools which are applied for cutting. This device stays very effective for performing complicated grinding.
The working table uses the dovetail guide rail, good rigidity, steady bed platform, dexterous operation.
The motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material’s cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Universal tool grinder application
PURROS PG-600 universal tool grinder application include reamer, screw tap, twist drill, reamer bit, milling cutter, cutter head, gear shaper cutter.
| Model: | PG-600 |
| About Worktable Diameter: | 300MM |
| About Worktable Travel in Schedule: | 150MM |
| Worktable Area: | 130*520MM |
| Rotating Angle of Wheel Head: | 360° |
| Grinding Wheel Size: | 125*50*32MM |
| Power/Speed: | 2800 RPM |
| Motor: | 3/4HP 220V/380V |
| Dimension: | 700*630*630MM |
| Weight: | 168KG |
| Standard Model: | 50C, 50H can grind slot miller, face and side cutter, lathe tool, hobbing cutter, reamer bit etc. |
| Optional Model: | 50E grind spiral milling cutter ball end mill, R type lathe tool, graver and other taper milling cutter. 50K can grind drill bit, screw tap, side mill, round bar and so on. 50D can grind end mill, side mill and so on. 50B table box 50J thimble |
