This grinder is portable, easy to operate, accurate and efficient.

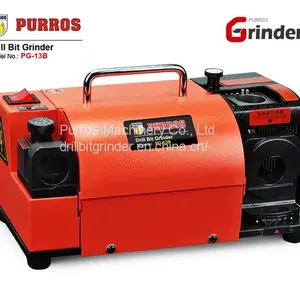

PG-13B drill bit grinder machine, portable, fast and small drill bit grinding machine.
PRODUCT INSTRUCTION
1. Grinding is accurate and rapid, easy to operate, and without requiring professional skills to grind. The weight of portable drill bit grinder machine is about only 10kg.
2. Economical price that greatly reduces the cost and improves the efficiency.
3. Efficient machine powered by 180W AC motor, easy to operate. The electrically controlled and powerful DC motor: stable frequency, strong horsepower.
4. With diamond grinding wheel, it can be equipped directly with an accurate angle and longer service life.
5. Bearing shaft and locking unit.
6. The minimum adjustment range is 1 mm, suitable for a various sizes of drill bit. The bit grinder machine is equipped with the function of adjusting the static point (central point), which can automatically coordinate according to the drilling material and the rotation speed. Range of grinding dia is within 2-13 mm. It can be controlled the quality precision and extend the service life of the drill bit.
1. It can sharpen the drill bit front cutting lip, lip relief angle and point angle, you also can control the center spot at random instead of center drill, chip removal easily.
2. With Taiwan diamond grinding wheel, it can be equipped directly with an accurate angle and longer service life.
3. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and longer service life.
| Model: | PG-13B |
| Range: | Φ2-Φ13(Φ15) |
| Angle: | 100°(90°)~135° |
| Voltage: | AC220V |
| Power: | 180W |
| Speed: | 4800RPM |
| Volume: | 32*18*19CM |
| Weight: | 10KG |
| Standard Model: | Grinding Wheel: CBN (for HSS)*1 |
| Types of Collet: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13 | |
| Spec of Collet Chuck: (Φ2-Φ14)*1 | |
| Optional Model: | Grinding Wheel: SDC (for Carbide)*1 |
| Types of Collet: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15 | |
| Spec of Collet Chuck: Φ15 |
