Help CenterChrome Moly Alloy Fittings
US$ 1000 - 3000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Material:
Alloy
Type:
Elbow
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
Place of Origin
China
Material
Alloy
Type
Elbow
Shape
Reducing
Head Code
Hexagon

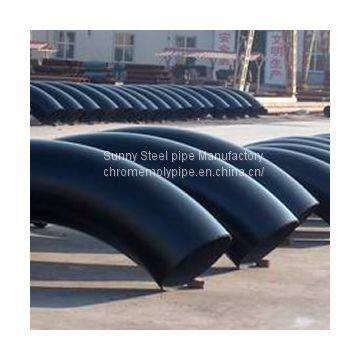

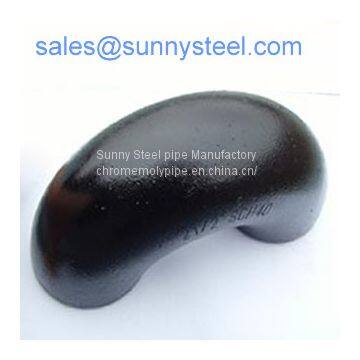

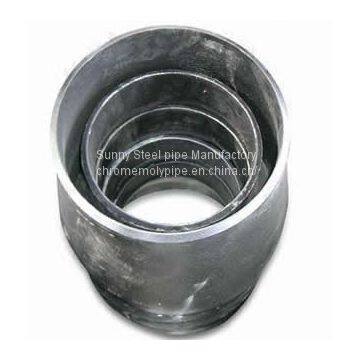

With the largest chrome inventory in the world, Sunny Steel carries a wide range of chrome moly alloy pipe fittings in a variety of sizes and pressure ratings to meet your project’s needs— including hard-to-find configurations and sizes.
Pressure Ratings:
2000#, 3000#, 6000#, 9000#
End Connections:
Threaded and socket weld
Specialty Fittings:
All sizes of swages, nipples and outlets available
Description of Material:
Chrome moly, ferritic alloy, creep and heat resistant
Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A234/A234M – 15
Scope
This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. The M in the designation stands for metric.
Materials
The starting material for fittings shall be fully killed steel, consisting of forgings, bars, plates, sheet, and seamless or fusion-welded tubular products with filler metal added and shall conform to the chemical requirements. Unless otherwise specified for carbon steel plates and sheet, the steel may be made to either coarse grain or fine grain practice. Grade WP9 shall be made to fine grain practice.
Chemical Requirements
NOTE 1: All requirements are maximum unless otherwise indicated.
NOTE 2: Where an ellipsis (...) appears in this table, there is no requirement and analysis for the element need not be determined or reported.
Quality Control
Whilst providing a quality, trusted service, we also place a high premium on quality craftsmanship. Our steel products are long-lasting, and always meet our clients exact specifications.
The purpose of this section is to display the general parameters and guidelines for the quality control of products manufactured on a day to day basis at the manufacturing facilities of Sunny Steel.
It is the intent of Sunny Steel to furnish products of the highest quality, using the best materials and workmanship available. All personnel involved in the quality control process, whether they are the location manager, or their designee, will conduct themselves in a professional manner, with the best interests of Sunny Steel Enterprise, and the customer in mind.
Testing:

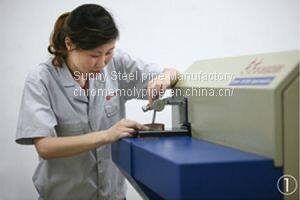

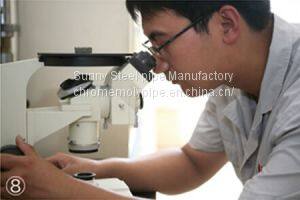

The production and inspection technological process of our company is arranged according to production standards, and we also establishes professional inspection organization which takes charge of the quality inspection of all process from raw material into the company to the final product store up. Inspections including destructive testing and non-destructive testing.

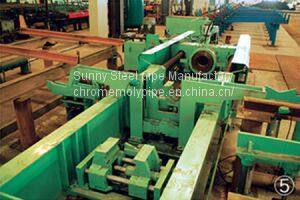

Our range of steel pipe testing equipment is among the most expansive in the seamless tube manufacturing industry. This equipment is essential for testing both the chemical and physical properties of each seamless pipe and the material used to make it. It also allows us to detect hidden steel tube defects, ensuring the pipe quality. Listed below is our primary range of testing equipment currently in operation.
1. Eddy current flaw detector
2. Ultrasonic flaw detector
3. Optical spectrum analyzer
4. Universal testing machine
5. Tensile strength tester, impact tester, hydrostatic test equipment, length measuring and weighing instruments.
