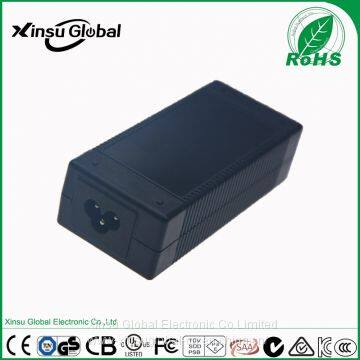

Help Center29V 1.5A 2A Lead-acid Battery Charger for E-ATV With CB CE GS Certificate
Related Products
-
Lead-acid Battery Charger 29V Sweeper Battery Charger 4A 5A 6A Lead Acid Battery ChargerUS$ 19 - 20MOQ: 300 Pieces -
E-ATV 29V 4A 5A 6A Lead-acid Battery Charger With GS CertificateUS$ 18 - 19MOQ: 200 Pieces
-
High Quality Scooter Battery Charger 50.4v 1a 2a Li-ion Battery ChargerUS$ 8.5 - 9.5MOQ: 300 Pieces
-
Indoor Use Battery Charger for Robot Lawn Mower, Mower Robot Charger, Waterproof 32V 2A 29.2V 2AUS$ 10.5 - 11.5MOQ: 300 Pieces
-
Universal BS Plug 12V Charger 12.6V 1A Li-ion Battery ChargerUS$ 3 - 3.5MOQ: 500 Pieces
product description
Product Electronics Parameter | ||
Product name |
29V 2A lead-acid battery charger for ATV with desktop connect |
|
Model number |
XSG2902000 |
|
AC input |
Input Voltage range: |
90~264Vac |
Reted input voltage: |
100~240Vac |
|
InputFrequency Range: |
47~62hz |
|
Input current max: |
1.3A |
|
Inrush current: |
35A Max/240V |
|
Efficiency: |
>89% |
|
No load Input power |
||
Leakage current: |
||
DC output |
Max charging voltage: |
29V |
Output voltage tolerance: |
5% |
|
Max charging current: |
0~2A |
|
Ripple and noise: |
||
Charging mode: |
3- stage, CC,CV,trickle charging |
|
Cut off current when charged full |
Optional |
|
LED indicator |
Charging: Red, Charged full: Green |
|
Charging current when charged full |
200mA |
|
Protection |
Over current protection |
PASS |
Over voltage protection | ||
Short circuit protection | ||
Over Temp protection | ||
Anti-flow protection | ||
Environment |
Operating Temp: |
0℃~+45℃ |
Storage Temp: |
-30℃~+70℃ |
|
Relative Humidity: |
10%~90% |
|
Vibration and shock |
Meet MIL-STD-810D |
|
Safety |
Safety standard |
EN60950,EN61558,EN60335 |
EMC/EMI |
Meet FCC CLASS B,EN55022 CLASS B. |
|
EMS |
EN61000-4-2 |
|
EN61000-4-3 | ||
EN61000-4-4 | ||
EN61000-4-5 | ||
A Harmonic source |
Pass |
|
HI-pot: Primary to Secondary |
3KVAC,5mA,60s |
|
Drop Test |
As per UL regulation |
|
Burning test |
100%,4-5 hours |
|
Life |
MTBF |
50000 hours |
Warranty |
3 years |
|

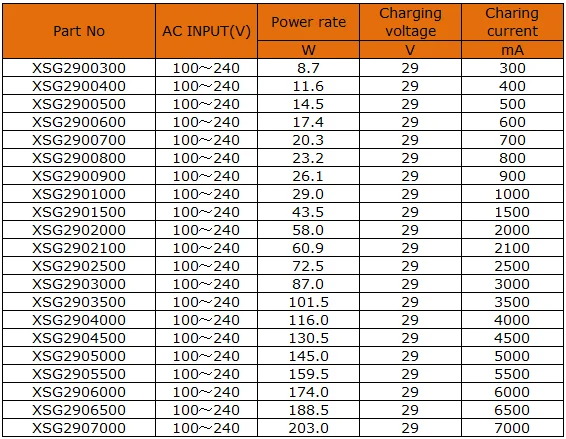

Model list
DC connecter
Certificates
Key components
