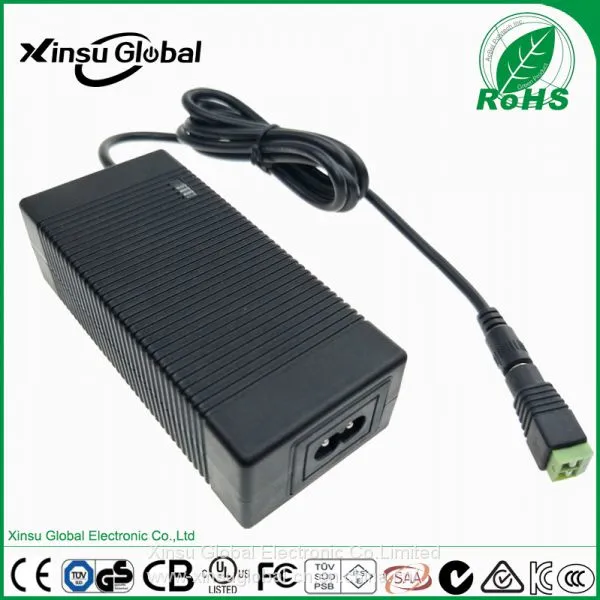

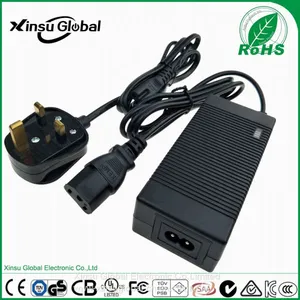

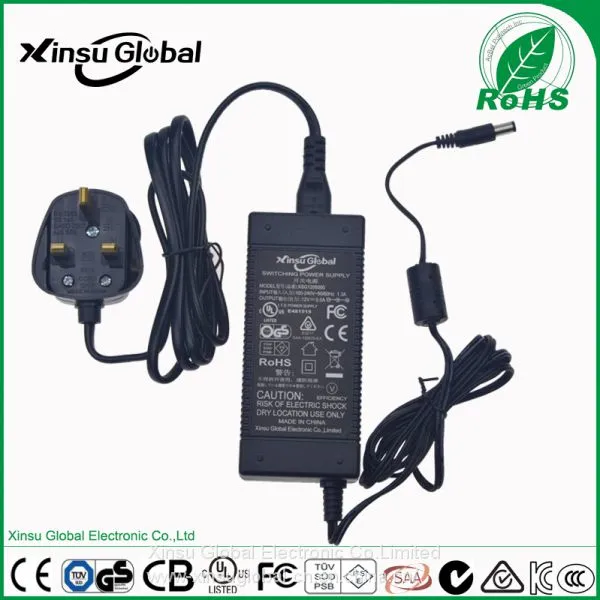

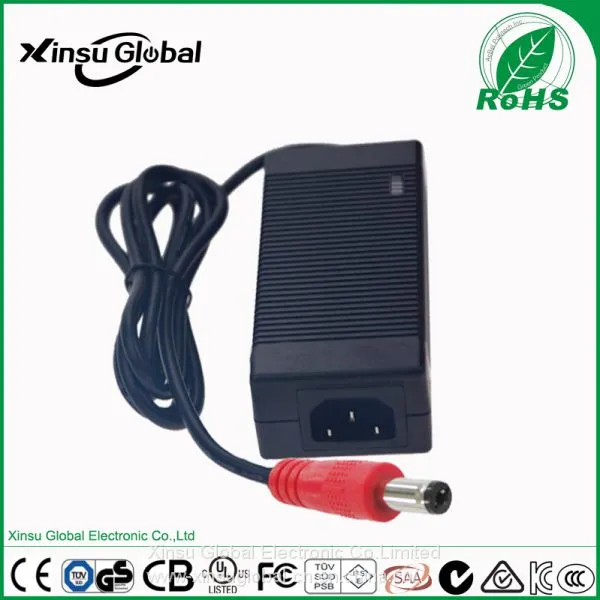

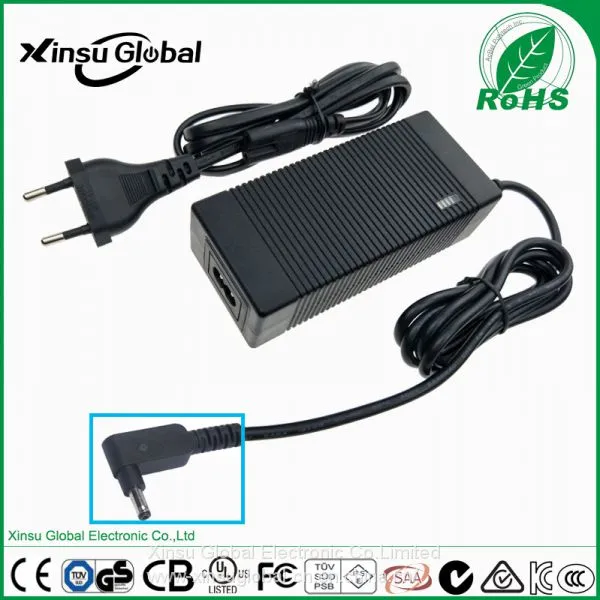

Cheap Price ac Laptop Charger Adapter 15V 10A ac Adapter With UL GS CB

Name: Cheap Price ac Laptop Charger Adapter 15V 10A ac Adapter With UL GS CB
Brand: Xinsu global
SKU: 157205656
Availability: InStock

US$ 27 - 28 MOQ: 100 Pieces

Key Specifications

Brand Name:

Xinsu global

Place of Origin:

China

Model Number:

XSG15010000

Xinsu Global Electronic Co.Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen &Hongkong

Delivery Detail:

20 days

Brand Name Xinsu global

Place of Origin China

Model Number XSG15010000

Usage Other, security system

Connection Desktop

Output Type DC

Product Describtion：12V 10A adapter

Product Electronics Parameter
Product name	Level 6 FCC GS SAA RCM UL PSE power supply SMPS 120w adapter dc 12v 10a adapter
Model number	XSG12010000
AC input	Input Voltage range:	90~264Vac
	Reted input voltage:	100~240Vac
	InputFrequency Range:	47~62hz
	Input current max:	3A
	Inrush current:	35A Max/240V
	Efficiency:	>88%
	No load input power
	Leakage current:
DC output	Output voltage:	15V
	Output voltage tolerance:	5%
	Rated output current:	0~10A
	Output current:	10A
	Ripple and noise:
	CV or CC	Optional
	Current limited:	Optional
	LED indicator	Green color
Protection	Over current protection	PASS
	Over voltage protection
	Short circuit protection
	Over Temp protection
Environment	Operating Temp:	0℃~+45℃
	Storage Temp:	-30℃~+70℃
	Relative Humidity:	10%~90%
	Vibration and shock	Meet MIL-STD-810D
Safety	Safety standard	EN60950,EN61558,EN60335
	EMC/EMI	Meet FCC CLASS B,EN55022 CLASS B.
	EMS	EN61000-4-2
		EN61000-4-3
		EN61000-4-4
		EN61000-4-5
	A Harmonic source	Pass
	HI-pot: Primary to Secondary	3KVAC,5mA,60s
	Drop Test	As per UL regulation
	Burning test	100%,4-5 hours
Energy efficiency level		CEC level VI, Doe VI
Life	MTBF	50000 hours
Life	Warranty	3 years
