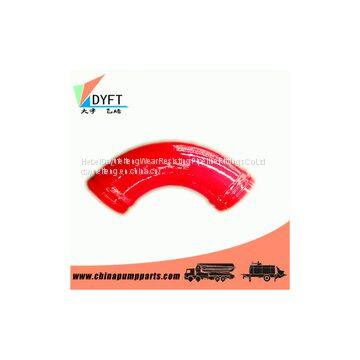

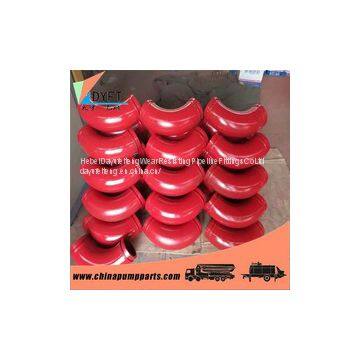

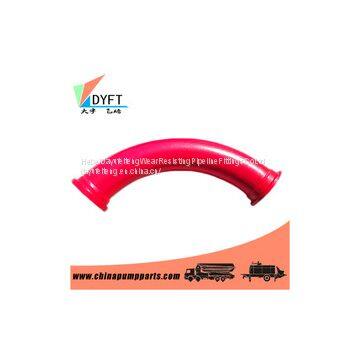

Help CenterConcrete Pump Elbow or Bend
Related Products
Brand Name:DYFT
Place of Origin:China
Model Number :DN125
Connection :Flange
Head Code :round
Material :Hi-Mn13, Twin wall
Shape :Equal
Type :Elbow
Size :DN 125mm or DN 150mm etc.
Degree :90, 60,45,30,15 etc.
Quality :cast manganese
Service Life :25,000-30,000cubic meters
Pump Brand :Schwing, Putzmeister, Kyo
Our Concrete pump elbow or bend data
construction manufacturer concrete pipe spare parts
They are used for pump of Putzmeister, Sany, Schiwng, Zoomlion, IHI brand .
Specification
Material:Hi-Mn13, Twin wall
Size:DN 125mm or DN 150mm etc.(R275,R225,R315,etc)
Degree:90, 60,45,30,15 etc.
Quality:cast manganese
Service Life:25,000-30,000cubic meters
Types:our concrete pump elbows mainly include single wall elbows, double layer(twin walls) elbows,wear-resisting elbows, advanced technology, work life long.
Pump Brand:Schwing, Putzmeister, Kyokuto, CIFA, Sany, Zoomlion
Application: They are used for the concrete transportation in construction work.
Technology: Concrete pump elbow,bend pipe is quenched and carried out carburizing chemical treatment on the inner wall. So it has high wear resistance.Twin walls elbow the inner layer is made of high hardness wear resistant alloy still by hear treatment and the outer tube is high toughness and low hardness and low carbon steel,which can guarantee the construction safety.
Strengthening degree -Thickened the most serious back bend of the bend for ensuring service life.
End wear: flange hinded with high chromium wear resistant ring mouth.
Scanning heat treatment:HRC 65
Hardened bend，high safety :overall HB180 hardness,toughness,to prevent pipe explosion.
| Concrete pump elbow single wall | Concrete pump elbow double wall elbow | |||
| DN125 | DN150 | DN125 | ||
| Casting Steel ,ST52 steel,45Mn2 | Inside(40Cr) | Outside | ||
| R275*90° | R275*90°+110 | 36° | R275*90° | R275*90°+110 |
| R275*45° | R275*90°+211 | R400*30° | R275*45° | R275*90°+211 |
| R275*25° | R275*90°+411 | R400*45° | R275*25° | R275*90°+411 |
| R275*20° | R275*90°+424 | R400*30° | R275*20° | R275*90°+424 |
| R275*15° | R275*45°+170 | R488*90 | R275*15° | R275*45°+170 |
| R180*90° | R275*45°+310 | R500*90 | R180*90° | R275*45°+310 |
| R232*60° | R275*45°+310 | R280*90° | R232*60° | R275*45°+310 |
| R240*36° | 20°Lengthen | R240*36° | 20°Lengthen | |
| R240*30° | 25°+740 | R240*30° | 25°+740 | |
| R240*15° | 40°Zoomlion | R240*15° | 40°Zoomlion | |
| R385*29° | R385*29° | |||
| R315*33° | R315*33° | |||
Price Condition :FOB
Price :USD50 / pcs
Delivery Port :Tianjin
Packing :Wooden case
Delivery Lead Time :Within 1-15 working days
Minimum Order :1 pcs
Supply Ability :900 Piece/Pieces per Day
