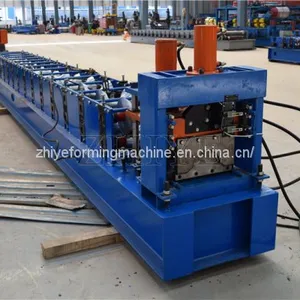

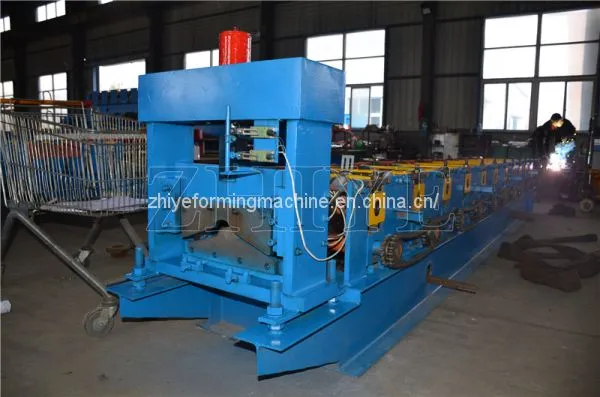

Help CenterNew Style Metal Ridge Cap Making Machine
Related Products
-
CE Standard PPGI Steel Ridge Cap Roll Forming MachineUS$ 8500 - 18500MOQ: 1 Set -
High Speed Manual Ridge Cap Roll Forming MachineUS$ 8500 - 18500MOQ: 1 Set
-
Automatic Rollformers Corrugated Steel Sheet Metal Roof Wall Panel Glazed Tiles RollUS$ 9000 - 11000MOQ: 1 Set
-
Glazed Roll Forming Machines for Glazed TilesUS$ 9000 - 11000MOQ: 1 Set
-
Light Weight Ceilling Tee Bar Roll Forming MachineUS$ 8500 - 18500MOQ: 1 Set
1.The Main Components
Manual decoiler

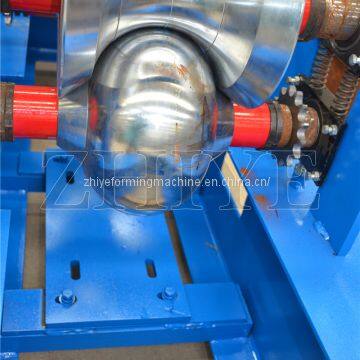

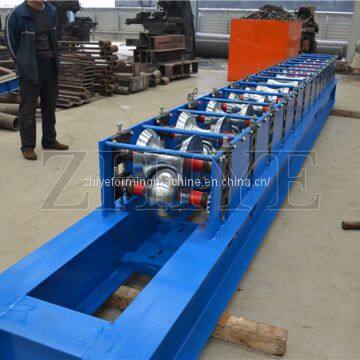

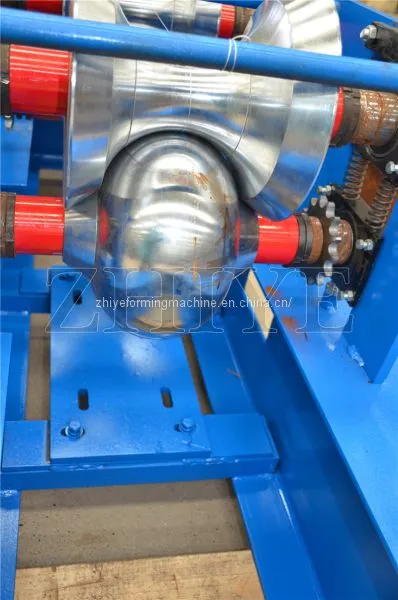

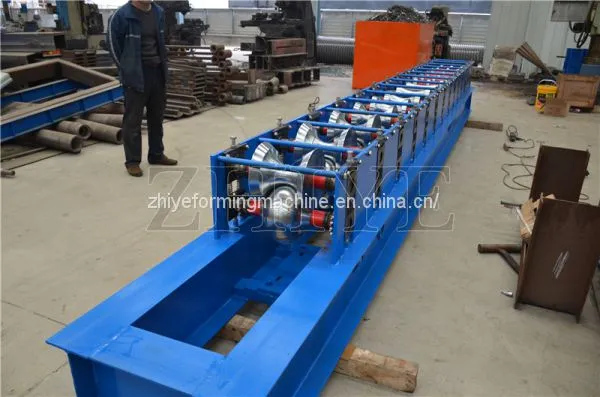

Main forming machine
PLC control system
Hydraulic pump station

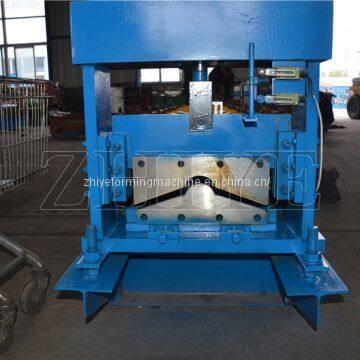

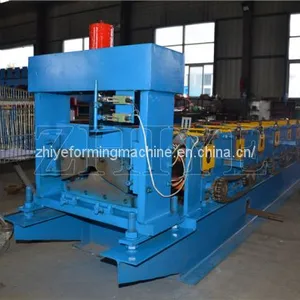

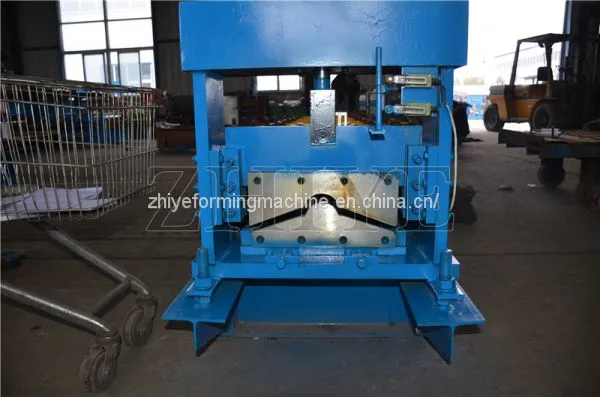

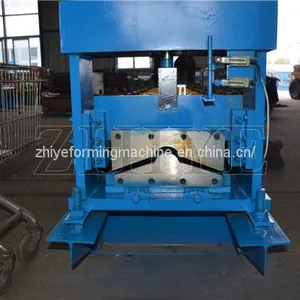

Post cut
Electric motor
Output table
2.The Parameters
1.Model No. Ridge cap roll forming machine
2.thickness:0.3-0.5mm
3.Coli material:PPGI
4.The bearing capacity of manual decoiler:5 tons
5.shaft material:45#steel
6.Out diameter :60mm
7.numbers of forming steps:11 stations
8.transmission:chain transmission
9.Forming speed:2-3m/min
10.main motor power:3kw
11.voltage:380V50HZ Three-phase
12.dimension:6.2*1.1*1.55
13.cutting:Hydraulic cutting
14.blade material:Cr12 steel with quenched treated 60-62°c
ntrol system:PLC(Delta)
16:length tolerance:±2mm
17.weight:4.8t
18.spare parts
1 easy damaged parts: conk 2pcs, fuse-link 4pcs
2 rubber mat: 1 pcs
3 bolt spanner: 1 pcs
Contact:
E-mail:rollformingmachine3@zhiyemachinery.com
Wechat：czzy18833785940
Whatsapp:+86 18833785940
Tel：+86 18833785940
Skype:rollformingmachine3@zhiyemachinery.com
Facebook:coldrollformingmachine@gmail.com
Send Inquiry to This Supplier
