This kind of Single Flute Spiral Solid Carbide End Mill Bits is especially designed for cutting or engraving Aluminum material, it produces fast feed rates and clean cut on Aluminum board, no smoke and no odor during the machining process. This bits are also good for acrylic, PVC, MDF, wood board machining work.
P.S. : Single Flute Spiral Router Bits is designed for faster feed rates in soft material, with acceptable finishes. Use single edge router bits when speed is the primary consideration and finish is less important. The single-flute cutter typically has lots of room for chips, but the single cutting edge limits either the feed rate or the hardness of the material to be cut.
Features:
Using high quality solid carbide material which produces longevity
Mirror grinding blade and perfect helix angle creates fast and clean cuts.
Large flute for better chips evacuation.
Specifications：

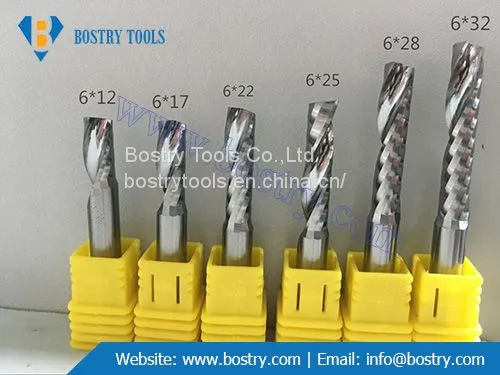

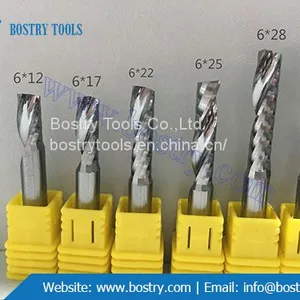

Single Flute Spiral Solid Carbide End Mill Bits for Aluminum comes with various sizes, here are part of the standard sizes with shank diameter of 6mm. If standard bits can’t solve your needs, don’t worry, we also provide custom services for manufacturing non-standard cutting engraving bits according to your request.
| Item No. | Specification | SHK D (mm) | CED (mm) | CEL (mm) | OAL (mm) |
| B2091 | 6*6*12 | 6 | 6 | 12 | 50 |
| B2092 | 6*6*15 | 6 | 6 | 15 | 50 |
| B2093 | 6*6*17 | 6 | 6 | 17 | 50 |
| B2094 | 6*6*22 | 6 | 6 | 22 | 50 |
| B2095 | 6*6*25 | 6 | 6 | 25 | 58 |
| B2096 | 6*6*28 | 6 | 6 | 28 | 58 |
