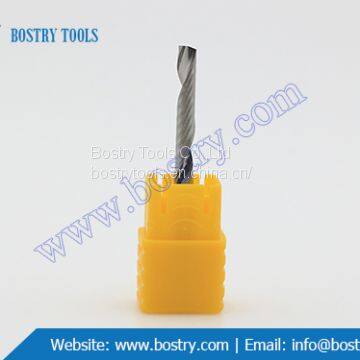

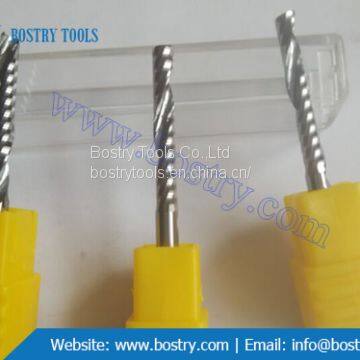

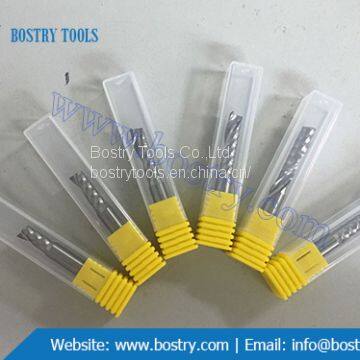

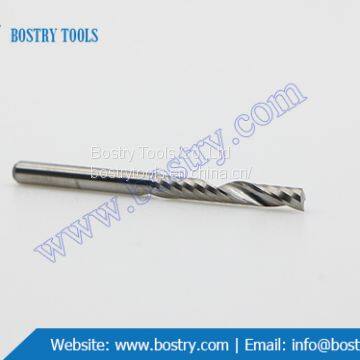

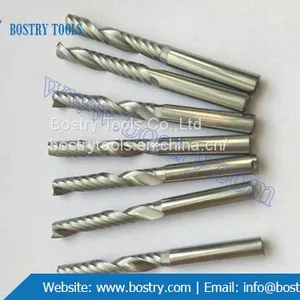

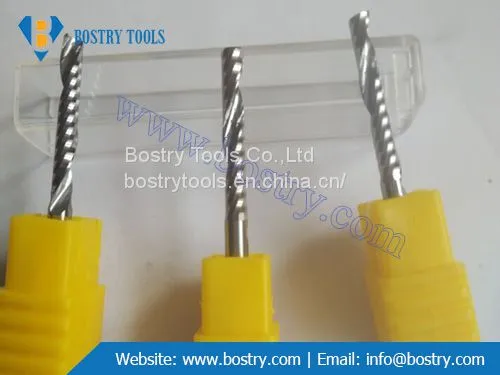

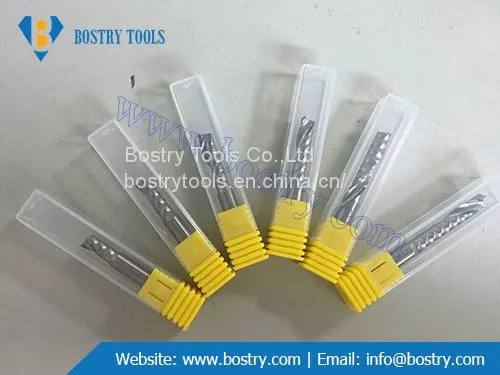

Help CenterSolid Carbide Single Flute Spiral End Mill Milling Cutter Wood Plastic Cnc Router Bits Cnc Tool Bits
Related Products
-
Single Flute Aluminum End Mill Cutting Tool Bits Spiral Cnc Router Bits for Soft MetalUS$ 1.9 - 6.9MOQ: 10 Pieces -
4 Flute Spiral Flat Solid Carbide End Mill for Metal Milling AlTiN Coating CNC Cutting ToolsUS$ 1.9 - 19.9MOQ: 1 Piece
-
End Milling Cutter Two Flutes 3.175-10mm Carbide End Mill CNC Milling Cutters Tungsten Carbide Milling Cutters for CNCUS$ 1 - 5MOQ: 1 Set
-
Tungsten Carbide End Mill CuttersNegotiableMOQ: 1 Piece
-
Soft Tissue End Mill CutterUS$ 2,000 - 5,500MOQ: 1 Unit
Features:
High quality solid carbide material
Mirror grinding blade using state of the art equipment
Perfect helix angle creates fast and clean cuts.
Large flute for better chips evacuation.
P.S. : Single Flute Spiral Router Bits is designed for faster feed rates in soft material, with acceptable finishes. Use single edge router bits when speed is the primary consideration and finish is less important. The single-flute cutter typically has lots of room for chips, but the single cutting edge limits either the feed rate or the hardness of the material to be cut.
Specifications：
Single Flute Spiral Solid Carbide End Mill Router Bits come with various sizes, and available with upcut or downcut spiral flute. Here are part of the standard sizes with shank diameter of 3.175mm (1/8 inch). If standard bits can’t solve your needs, don’t worry, we also provide custom service for non-standard cutting engraving bits according to your request.
| Item No. | Specification | SHK D (mm) | CED (mm) | CEL (mm) | OAL (mm) |
| B2292 | 3.175*10 | 3.175 | 3.175 | 10 | 38 |
| B2293 | 3.175*12 | 3.175 | 3.175 | 12 | 38 |
| B2294 | 3.175*15 | 3.175 | 3.175 | 15 | 38 |
| B2295 | 3.175*17 | 3.175 | 3.175 | 17 | 38 |
| B2296 | 3.175*20 | 3.175 | 3.175 | 20 | 42 |
| B2297 | 3.175*22 | 3.175 | 3.175 | 22 | 45 |
