Tool and die maker have to pay attention points when manufacturing

yizejiuyue01

Our service include:

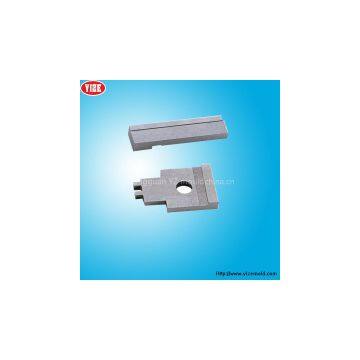

Product name:stamping mould components

Product size: customization

Material:Japan(SKD11.SKD61.SKH51.S45C)

      USA(AISA.D2.H13.P20.M2)

      Germany(DIN.2379.2363.2344.2347)

      ASSAB(Rigor.Stavax.Impax.Elmax.ASP23)

Hardness:58-60 HRC

Grinding precision:0.001mm

Electric discharge processing precision:0.002mm

With the development of science and technology,precision nould part manufacturers has increase.In order to product high

quality,high precision mold parts,tool and die maker have to pay attention points are what?Here are two kinds of tool and die maker have to pay attention points:

About cooling, heating system

1.Cooling or heating system should be unimpeded

2.The sealing device should be reliable,the system under the 0.5MPa pressure shall not have leakage phenomenon and

easy to repair

3.The seal groove’s size and shape should comply with the relevant standards

4.The sealing ring should apply butter,then placed higher than the mold surface

5.The spacer between the water and the oil shall be using the material which is not easy to be corroded

6.Front mould and back mould should centralized drainage

About gating system

1.Gate setting should not affect the appearance of the product,and than can meet the product assembly

2.The flow section,length should be designed reasonably.In order to ensure the quality of the process to shorten the process,

reduced the cross-sectional area to shorten the filling and cooling time

3.Ball-head tension rod should be fixed,it can be pressed below the positioning ring and also be fixed by without head screw

4.Sprue gate should be in accordance with the requirements of the specification

5.The front end of the runner should be extend as gold wall

Welcome to figure offer,the price is for reference only, we have a professional considerate service to you.
