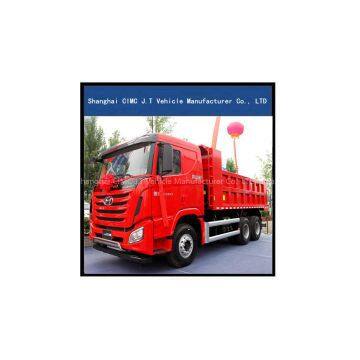

Hyundai Dump Truck 6X4

Model WXNLDMDKBVT3/CHM3250KPQ52M
Driving type: 6*4 left hand driving
Engine Make: HYUNDAI POWERTEC
Diesel 4-stroke direct injection diesel engine, electronic control
Engine model: D6CF41E4, Euro III emission standard
6-cylinder in-line with water cooled, turbo-charging and intercooler
Maximum output: 410 hp (302 Kw) at 1900 rpm
Maximum torque: 1796 Nm at 1200-1500r/min
Number of cylinder: 6 in line;Displacement: 12.742 L;Bore: 125 mm;Stroke: 147 mm
Specific fuel consumption: 198 g/kWh;Engine oil filling quantity: 19 l;Cooling system filling quantity (long-term filling): 40 l;Thermostat with 71ºC opening begin;Single cylinder air compressor;Rigid fan
Transmission HYUNDAI T230S12, with overdrive, synchronized, 12 forwards and 2 reverse, 2300N.m
Ratio: 12.29   9.57  7.49  5.83  4.57  3.55  2.69  2.10  1.64  1.28  1  0.78  10.86(R1) 8.46(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HYUNDAI, Steering with doubleT-cross section beam, 7.5 T, drum air brake
Rear Axle HYUNDAI H120ST, 16 T Pressed axle housing, hub reduction and with differential locks between wheels and axles .
Ratio:4.8      Option: 4.8,5.73,6.29   6.77
