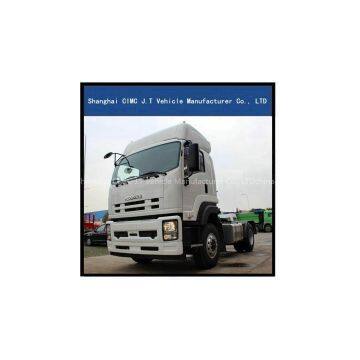

Isuzu Tractor Truck 4X2

Model QL4181UJCR
Driving type: 4*2 left hand driving

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Maximum torque: 1422 Nm 1400 r/min
Number of cylinder: 6
Displacement: 9.8 L
Specific fuel consumption: 184 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan

Transmission FULLER 12JSD160(TA), 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08  9.39  7.33  5.73  4.46  3.48  2.71  2.1  1.64 1.28  1   14.86(R1) 3.33(R2)

Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU R130, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
13 Tons Capacity, Ratio Selective:3.9,  4.1,  4.3

Chassis Frame: U-profile parallel ladder frame, and reinforced subframe 285×85×7 all cold riveted cross members, Manganese steel
Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre
Saddle 3.5 inch

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn, 24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions  mm Wheel base 3450
Front wheel track 2060
Rear wheel track 1855
Front overhang  1370
Rear overhang 970
Approach angle (0) 17
Departure angle (0) 40
Overall length 5800
Overall width 2500
Overall height  3300
Weight  kg Dead weight 6450
Maximum Loading Capacity 25000
Gross vehicle weight 32000
Front axle loading capacity 7500
Rear axle loading capacity 13000
Performance  Maximum driving speed  (km/h) 110
Maximum gradeability (%) 34
Minimum ground clearance (mm) 278
Fuel consumption (l/100 km) 26
Optional Equipment++ Air Condition AC+ US$500.00
Power Steering+ US$1,000.00
Remote Control(Central locking) US$300.00
Air Suspension Seats US$250.00
All tires changed to tubless 295/80R22.5 or 11.00R20 radial US$600.00
ABS US$750.00
