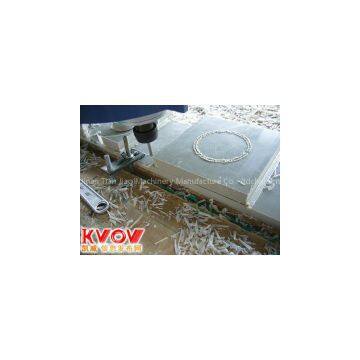

3 tools changing cnc wood carving machine price
Confagurations:
1.The max speed is up to 35m/min,engraving speed is 25m/min
2Adopting easy coperated DSP control system, it is convenient to oprate
3.Unique intelligent budget principle make the motors offering the high speed,
so it could make the strraight and smooth curves.
4.Double air cylinder
5. High strength steel tube jointing
6.The table equipped with 6 divided vacuum zones
7.original NC-studio system
Parameter
NO. Description | Parameter | |
1 | Table size | 1480*3000mm |
2 | X,Y working area | 1300*2500mm |
3 | Z working area | 200mm |
4 | Max. speed | 35m/min |
5 | Working Speed | 25m/min |
6 | Resolution/work delicacy | 0.02mm |
7 | Repositioning Accuracy | 0.05mm |
8 | Interface | USB |
9 | Command | G code*.u00*.mmg* plt |
10 | Surroundings for software | windows98/2000/xp |
11 | Control system | DSP control system |
12 | Power(spindle power is not included) | 8.87KW |
13 | Working voltage | AC380V 50Hz |
14 | Spindle power (domestic made) | 4.5KW water cooling spindle |
15 | Spindle rotating speed | 0-24000rpm/min |
16 | Motor | Stepper |
