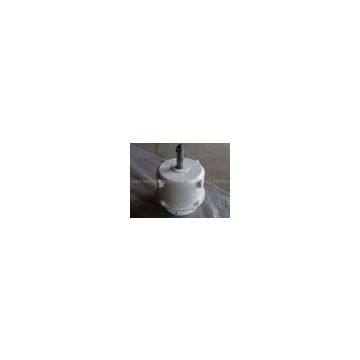

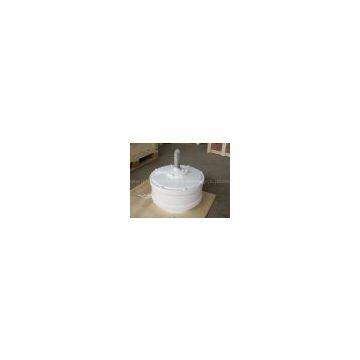

Home > Industrial Equipment & Components > Power & Generating Sets > Wind Generator > 3 Phase Permanent Magnet Generator300w-15kw
US$ 435 - 435
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINFAN
Place of Origin:
China
Model Number:
JFVC-300w
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Horizontal Axis Wind Turbine 1kw-10kwUS$ 1490 - 1490MOQ: 1 Piece -
Vertical Axi Wind Turbine Generator 300w-5kwUS$ 1605 - 1605MOQ: 1 Piece
-
Photovoltaic Power GenerationUS$ 1770 - 4510MOQ: 1 Set
-
10.5 KV Static Thyristor Excitation Steam Turbine AlternatorUS$ 82,000 - 500,000MOQ: 1 Set
-
Portable Solar Generator 1000w SP-500US$ 20 - 500MOQ: 100 Pieces
Brand Name
JINFAN
Place of Origin
China
Model Number
JFVC-300w
| QINGDAO JINFAN ENERGY SCIENCE & TECHNOLOGY CO.,LTD. | ||||||||||||
| model | JFVC-300w(80rpm) | JFVC-500w(80rpm) | JFVC-1kw(50rpm) | JFVC-1kw(100rpm) | JFVC-2kw(50rpm) | JFVC-3kw(50rpm) | JFVC-3kw(100rpm) | JFVC-5kw(50rpm) | JFVC-5kw(100rpm) | JFVC-10kw(50rpm) | JFVC-10kw(100rpm) | JFVC-15kw(125rpm) |
| generator type | synchronous permanent magnet 3 phase AC | |||||||||||
| magnetic steel material | 38SH NdFeB | |||||||||||
| class of insulation | B | |||||||||||
| housing material | cast iron | cast iron | cast iron / aluminium | aluminium | cast iron/aluminium | Cast iron/aluminium | aluminium | Cast iron/aluminium | aluminium | cast iron | aluminium | aluminium |
| shaft material | 45# steel | |||||||||||
| rated power(KW) | 300W | 500W | 1KW | 1KW | 2KW | 3KW | 3KW | 5KW | 5KW | 10KW | 10KW | 15KW |
| rated rotate speed(RPM) | 80RPM | 80RPM | 50RPM | 100RPM | 50RPM | 50RPM | 100RPM | 50RPM | 100RPM | 50RPM | 100RPM | 125RPM |
| rated voltage(VAC) | 12/24VAC | 12/24/48VAC | 24/48/96/120/220/240VAC | 24/48/96/120/220/240VAC | 48/96/120/220/240VAC | 48/96/120/220/240360/380VAC | 48/96/120/220/240/360/380VAC | 48/96/120/220/240/360/380VAC | 48/96/120/220/240/360/380VAC | 220/240/360/380VAC | 220/240/360/380VAC | 220/240/360/380VAC |
| grade of protection | IP54 | |||||||||||
| weight(KG) | 48 | 57 | 96(cast iron)/84(aluminium) | 55 | 154(cast iron)/129(aluminium) | 235(cast iron)160(aluminium) | 115 | 285(cast iron)/209(aluminium) | 120 | 400 | 222 | 467 |
| start up torque(N.M) | 0.9 | 0.9 | 8.82(cast iron)/10.78(aluminium) | 5.88 | 9.31(cast iron)/13.72(aluminium) | 14.7(aluminium) | 11.76 | 15.68(cast iron)/16.66(aluminium) | 14.7 | 37.2 | 12.74 | 22.56 |
| rated torque at rated speed(N.M) | 66.5 | 101 | 315 | 143 | 554 | 889 | 380 | 1346 | 576 | 2366 | 1144 | 1267 |
| number of poles | 22 | 22 | 32(cast iron)/22(aluminium) | 22 | 22(aluminium)/32(cast iron) | 46(aluminium)46(cast iron) | 32 | 46(aluminium)/46(aluminium) | 32 | 46 | 46 | 16 |
