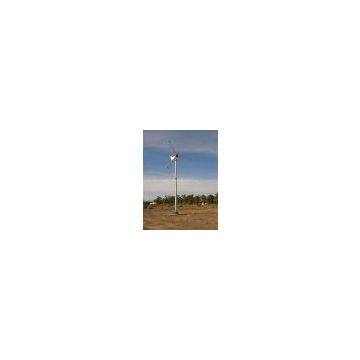

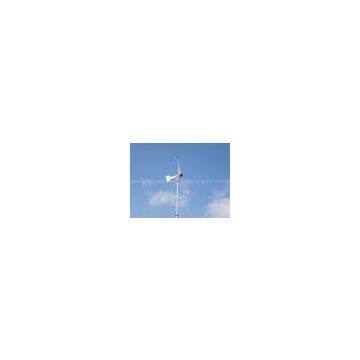

Home > Industrial Equipment & Components > Power & Generating Sets > Wind Generator > Horizontal Axis Wind Turbine 1kw-10kw
US$ 1490 - 1490
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINFAN
Place of Origin:
China
Model Number:
1kw-10kw
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Vertical Axi Wind Turbine Generator 300w-5kwUS$ 1605 - 1605MOQ: 1 Piece -
3 Phase Permanent Magnet Generator300w-15kwUS$ 435 - 435MOQ: 1 Piece
-
Photovoltaic Power GenerationUS$ 1770 - 4510MOQ: 1 Set
-
10.5 KV Static Thyristor Excitation Steam Turbine AlternatorUS$ 82,000 - 500,000MOQ: 1 Set
-
Portable Solar Generator 1000w SP-500US$ 20 - 500MOQ: 100 Pieces
Brand Name
JINFAN
Place of Origin
China
Model Number
1kw-10kw
| The technical parameter of horizontal axis wind generator | |||||
| Model | JFNH-1KW | JFNH-2KW | JFNH-3KW | JFNH-5KW | JFNH-10KW |
| diameter of wind wheel | 2.4m | 3.7m | 4.6m | 5.4m | 7.4m |
| material of blades | Fiberglass-Reinforced Plastics | ||||
| blades number | 3 | ||||
| RPM | 430r/min | 330r/min | 320r/min | 320r/min | 200r/min |
| rated wind speed | 8m/s | 8m/s | 10m/s | 10m/s | 13 m/s |
| start up wind speed | 2.2m/s | 2.5m/s | 2.7m/s | 2.7m/s | 3m/s |
| working wind speed | 3-25(m/s) | 3-25(m/s) | 3-30(m/s) | 3-30(m/s) | 3-30(m/s) |
| security wind speed | 40m/s | 40m/s | 50m/s | 50m/s | 50m/s |
| generator style | 3-phase AC PM | ||||
| protection grade of generator | IP54 | ||||
| material of generator case | aluminium | Q235 | |||
| rated power | 1000W | 2000W | 3000W | 5000W | 10KW |
| the max power | 1200W | 2500W | 3500W | 6000W | 12KW |
| rated voltage (DC) | 24V/48V | 48V/96V | 220V | 220V | 220V /380V |
| the height of tower | 6m | 8m | 8m | 9m | 12m |
| guy cable tower type(mm) | ∮75 | ∮89 | ∮133 | ∮159 | ∮219 |
| top weight (generator+blades) | 35kg | 102kg | 152kg | 195kg | 460kg |
| brake type |
Stall put tail |
Centrifugal wheel intelligent slowing down | |||
| controller and inverter | on grid \"> advanced wind & solar hybrid controller | ||||
| battery reference | 12V200ah,2pcs / 12V100ah,4pcs | 12V150ah,4pcs / 12V100ah,8cps | 12V100ah,18pcs | 12v150ah ,18pcs | 12V150ah,30 pcs |
