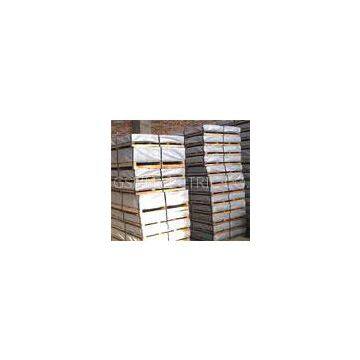

Help CenterPresspahn, Presspaper , Pb2, Precompressed Press Board ,Transformer Pressboard, Presspahn Gaskets ,Presspahn Washers
Related Products
-
Vulcanised Fibre Sheets, Vulcanised Fibre Board,vulcanised Fibre Washers, Vulcanized Fiber Gaskets, Vulcanised Fibre Seals, Vulcanized Fier Strip. Vulcanized Fiber ,Vulcanex, Fishpaper Fibra Vulcanizzata ,vulcanizado Fibra,fish PaperNegotiableMOQ: 1 Piece -
Fiber Washers Gaskets Strips Seals ,G10 G11 FR4 GPO3, HDPE , Polypropylene Washers , PTFE Washers ,Polythene , ABS , HIPS , Nylatron , Mylar , PVC Acetal Delrin Polycarbonate Polyurethane Washers Gaskets StripsNegotiableMOQ: 1 Piece
-
Double-layer FIBREGLASS of Silicon Rubber TubingNegotiableMOQ: 1 Piece
-
Insulation Paper Tube,G10 FR4 G11 FR5 Tubes Glass Reinforced Epoxy ,Tubes Fabric Reinforced Phenolic,Canvas C CE Fabric Reinforced Phenolic ,G7 Tubes Glass Reinforced SiliconeNegotiableMOQ: 1 Piece
-
Fiberglass Ladder Rails/Fiberglass Step Ladder/Fiberglass D-Rung Extension Ladder/Fiberglass Twin Ladder / Fiberglass StepladderNegotiableMOQ: 1 Piece
Presspahn LAMINATED BOARD , stripS spacers Transformers,end rings ,clamping rings,stress ring blank ,collars with spacers,hard cylinders ,corrugated boards,angle ring PAPER CHANNEL
HONGSHIELECTRIC CO,LTD leading Transformer Presspaper OilFilled Transformers Insulating cardboard in rolls and sheets .AND also processPresspahn Gaskets ,Presspahn Washers Presspahn LAMINATED BOARD , stripS spacersTransformers,end rings ,clamping rings,stressring blank ,collars with spacers ,hard cylinders ,corrugated boards Transformer Presspahn USHAPE SPACER,Slot Wedges,Slot Liners,PAPER CHANNEL ,angle ring PAPER CHANNEL Transformer board made from 100% unbleached sulphate wood pulp. Availablethickness from 0. 1mm to 20. 0mm .Presspahn Presspaper ,pre- Pressboard,Transformer Presspaper,PAPéIS PRESSPHAN, INSULATION PAPER , Laminated Pressboard,Electrical Insulation pape use in Insulatingcomponents in oil-filled transformers, vertical separators, core insulationsSlot linings, circumferential insulations, interleaving insulations forelectrical machines, punched parts Cooling channels in oil-filled transformersPunched and moulded parts, coil formers, stator and rotor end plates, stampedshims etcs.competitive quote in china .
Insulation for transformers Pressboard Class 2|- Pre-compressed PressBoards|Laminated Pressboard： from 100% Unbleached sulphatewood-pulp. Cardboard makes which on the intermittent type board machine .
Its characteristic is: Material free of strain,very flat , thickness even, thesurface smooth, the mechanical strength high, has the obdurability and theelectric insulation.We supply pressboard in sheets and presspaper in rolls aswell as components of pressboard for production of output transformers anddistribution transformers.
Components and insulating sheets of pressboard are used in oil-cooled powertransformers and distribution transformers primarily due to their high purity,mechanical strength and optimal oil-impregnability. The components formed ofpressboard, such as angle rings, snout segments and end leads, enable an exactadaptation to the electric field conditions prevailing in the transformer.
Especially in the sector of high field strengths, the dimensional stability andgood dielectric features are of great advantage. Special forming and pressingprocedures are employed in the manufacturing technology of the pressboardcomponents.
PB2(Pressboard Class2):Thickness：0.10，0.13，0.18，0.25，0.38，0.50，0.80，1.00，1.60，2.00，2.50，3.00．mm
PI2(Coil Insulating Paper Class2):Thickness 0.03，0.04，0.05，0.06，0.075，0.08，0.09，0.10，0.13，0.18，0.25，0.38mm
Heat Resistant Papert for Insulating "HPI-Green":Thickness 0.05 ,0.075 , 0.08mm
Diamond Dot Paper:Thickness 0.08 0.13 0.18 0.25 0.38mm
size:1000mm*2000mm\\1000mm*1000mm/1200mm*2400mm
