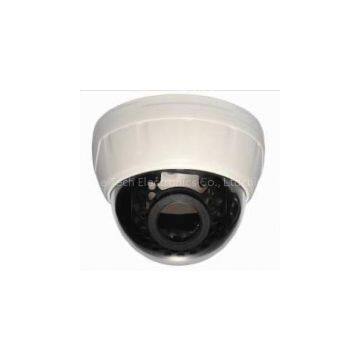

IP Camera (SSV-IP-6101-13S/SSV-IP-6101-20S)

Model : SSV-IP-6101-13S  /  SSV-IP-6101-20S

System : Embedded RTOS, dual-core 32bit DSP

Image Sensor : Aptina CMOS  /  SONYCMOS

Minimum illumination : Color: 0.01Lux/F1.2，B/W: 0.001Lux/F1.2

Lens (Optional) : Standard: 3MP 4.0mm

IR (Distance) : 30Φ5 IR LEDs, 25~30M

Video Compression : H.264 dual-stream, AVI format, stream 1~6M/ 1~30fps adjustable

Main Stream : 1280x960/1280x720  /  1920x1080/1280x720

Sub Stream : 704x576

Day/Night Mode : ICR automatic switch

Audio Compression: N/A

Audio Input      :N/A

Audio Output   : N/A

Network Port   : RJ45 Port, 10/100M

Network Protocol    : RTSP/FTP/PPPoE/DHCP/DDNS/NTP/UPnP

USB Port  :N/A

Auto-Iris  :N/A

Photoresist Port : Support IR-Cut drive

PTZ Port   :N/A

CVBS Output   :N/A

Alarm In/Out   : N/A

ONVIF Protocol : Support ONVIF protocol

POE : Optional

Operating Temperature  : -100C~600C

Waterproof      :IP66

Power Supply   : DC12V±10%

Dimensions     :Φ140x102 mm

Weight     :800g
