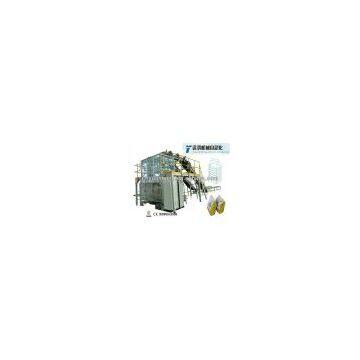

Automatic Bag in Bag Packaging Machine

Application:Food,Beverage,Medicine,Chemistry

Packaging Type:Bags,Film,Foil

Packaging Material:Plastic,woven bags

Driven Type:Pneumatic

Dimension(L*W*H):3450*2460*3650MM

Weight:1900KG

After-sales Service :Overseas service center available

Size:5900*2800*2500mm

Delivery :60days

    This automatic bag in bag packing machine  majorly accomplishes the fully-automatic packaging procedure that puts packed sachets as required order into woven bags ,which realizes automated job from raw material to packed woven bags .It will hugely reduce costs and improve efficiency .it is widely used in the industry of washing powder,salt,seed,milk powder etc.

   Process Flows:Raw material--automatic vertical weighing packing machine--sachet products--horizontal conveyor-- double-deck slope conveyor-- high speed conveyor-- counting bag arrangement machine-- woven bag automatic packaging machine--sewing machine-- end product output.

Technical parameters:

1.Packaging capacity:150g-3000g

2.Speed:woven bag 6-10 bags/min.,sachets:60-180 sachets/min.

3.Spread patterns : single-row,biserial,vertical line etc.

4.Compressed air:0.6-0.8MPa,air flow:0.8 m3/min

5.Power: 6Kw ,380V ,50Hz
